VICON TDX 16 STND, ROLLFORMER
Location:
McClellan Park, CA
Manufacturer:
Vicon
Model:
TDX

Specifications

Condition:
new
Stock number:
7624
Motor:
7.5 HP
# of stations:
16
Forming speed:
70 Feet Per Minute
Subcategory:
Rollformers

Description

Model: TDX
# Of Stations: 16
Motor: 7.5 HP
Forming Speed: 70 Feet Per Minute

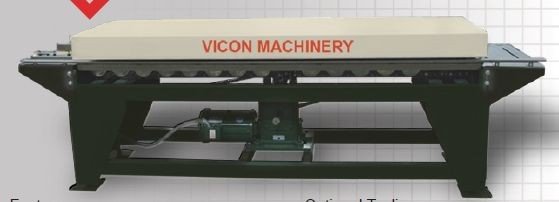

The Vicon TDX Rollformer will produce SMACNA's T25a or T25b
connections. Material is formed to produce a SMACNA approved
transverse flange connection.
FEATURES:
* Sixteen forming stations for superior quality
* Inboard and one outboard roll space available
* 7.HP motor coupled to an industrial oil bath gear
reducer for quiet longevity
* Independent adjustment at each forming station with pre
set spring tension
* Heavy duty roller chain drive (no belts)
* Heavy duty 1 1/4" diameter stress proof roller shafts
* Large heavy duty bearings with inner races to protect
roll shafts and extend the life of the machine
* Material capacity of 18 to 26 gauge with no adjustments
necessary between gauges
* 6" minimum part length with the use of the included
small parts feeder
* Roller bearing infeed guides reducing wear from plasma
cut edges (optional)
* Forming speed 70 feet per minute
INBOARD OPTIONAL ROLLSETS:
TDX Clip (sixteen stations) $ 6,600.00
1 1/8" 20 Gauge Standard Standing "S" $12,540.00
OUTBOARD OPTIONAL ROLLSETS:
TDX Clip (12 Stations) $5,390.00
1-5/8" 16 Gauge 2-in-1 Standing Seam (12-Sta) $5,225.00
1-1/8" 18 Gauge 3-in-1 Tap-in-Law, Standing Seam
and Right Angle Flange (10-sta) $5,255.00
2" x 2" Angle $5,225.00
(Available Inboard for Additional $1,000.00 price add)
16 Gauge Pittsburgh (8 Stations) $3,960.00
100% MADE IN THE USA!!
