Top Seller
RAMS RAMS-2014 9 STND, AUXILIARY
Location:
McClellan Park, CA
Manufacturer:
RAMS
Model:
RAMS-2014
Capacity:
20 Gauge Max. - 28 Ga. Min. Mild Steel
Weight:
600 lbs

Specifications

Condition:
new
Stock number:
6332
Motor:
3 HP, 110/208-230 VOLT
Capacity:
20 Gauge Max. - 28 Ga. Min. Mild Steel
Dimensions:
63" Long x 26" Wide x 34" High
Approx. speed:
40 FPM
Approx. weight:
600 lbs
Pittsburg rolls:
24 Ga Max, 28 Ga Min
Features include:
hinged table top and square drive shafts
Drive cleat rolls:
20 Ga Max, 26 Ga Min
Pittsburg rolls 2:
20 Ga Max, 22 Ga Min
6 in 1 tap-in rolls:
22 Ga Max, 26 Ga Min
Acme double seam rolls:
20 Ga Max, 26 Ga Min
Male button lock rolls:
20 Ga Max, 24 Ga Min
Female button lock rolls:
20 Ga Max, 24 Ga Min
Male button lock rolls 2:
24 Ga Max, 28 Ga Min
Female button lock rolls 2:
24 Ga Max, 28 Ga Min
Subcategory:
Rollformers

Description

Model: Rams-2014
Capacity: 20 Gauge Max. - 28 Ga. Min. Mild Steel
Motor: 3 HP, 110/208-230 VOLT,
Approx. Speed: 40 FPM
Dimensions: 63" Long x 26" Wide x 34" High
Approx. Weight: 600 lbs.

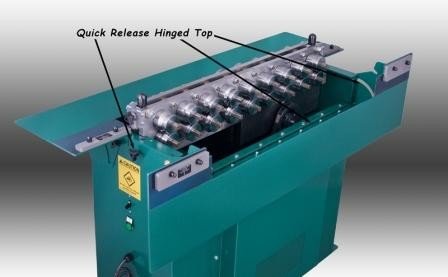

The RAMS 2014 Auxiliary Machine is like no other machine
available on the market today. Features a 5 HP motor 208-
230V single phase. It was designed specifically for ease of
use, flexibility and the convenience of the end user. Key
features include: hinged table top and square drive shafts
which allows easy access to change out a complete roll set
in less than five minutes, quick change tooling which
requires no keys or tools, and quick jam clearing. This
machine can convert from a button lock to an Acme & Drive
Cleat machine instantly.
No other manufacturer offers this machine. There is no "S"
cleat down the middle. Instead, drive gears down the middle
power outboard shafts on both sides. On the outboard shafts
we developed a square drive, eliminating the key and keyway
on the roller. Roll sets now available are "6 in 1 Tap-in",
"Right Angle", "Drive Cleat", "ACME Double Seam", and "Male
and Female Button Lock". The RAMS square drive shafts
enable quick change of rolls - swap a full set of rolls in
less than 3 minutes. No tooling or keys to worry about. Just
push a button to release the rolls. Convert from a Button
lock to an ACME/Drive Cleat machine or whatever combination
you desire in just minutes. No adjustments necessary .
ROLL CHART & GAUGE CAPACITY:
6 in 1 Tap-in Rolls: 22 Ga Max, 26 Ga Min
ACME Double Seam Rolls: 20 Ga Max, 26 Ga Min
Drive Cleat Rolls: 20 Ga Max, 26 Ga Min
Male Button Lock Rolls: 20 Ga Max, 24 Ga Min
Female Button Lock Rolls: 20 Ga Max, 24 Ga Min
Male Button Lock Rolls: 24 Ga Max, 28 Ga Min
Female Button Lock Rolls: 24 Ga Max, 28 Ga Min
Pittsburg Rolls: 24 Ga Max, 28 Ga Min
Pittsburg Rolls: 20 Ga Max, 22 Ga Min
Roller Storage Tray available as an option
MADE IN THE USA!!
2-YEAR WARRANTY!!
