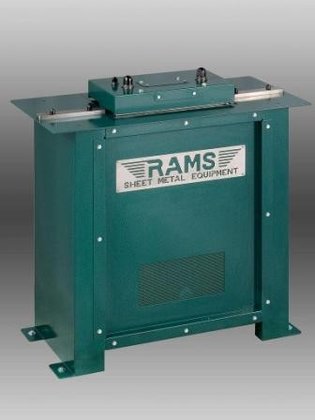

RAMS 20 GA. PITTSBURG 5
Location:
McClellan Park, CA
Manufacturer:
RAMS
Model:
20 GA. PITTSBURG
Capacity:
20 Gauge Max. to 26 Gauge Min. Mild Steel
Weight:
350 lbs

Specifications

Condition:
new
Stock number:
4904
Motor:
1 HP, 115/208-230V, 1725 RPM
Speed:
25 FPM
Capacity:
20 Gauge Max. to 26 Gauge Min. Mild Steel
# of stations:
5
Approx. weight:
350 lbs
Approx. dimensions:
36" Long x 17.5" Wide x 34" High
Subcategory:
Rollformers

Description

Model: Rams-2006 (20 Gauge)
Capacity: 20 Gauge Max. to 26 Gauge Min. Mild Steel
# of Stations: 5
Motor: 1 HP, 115/208-230V, 1725 RPM
Speed: 25 FPM
Approx. Dimensions: 36" Long x 17.5" Wide x 34" High
Approx. Weight: 350 lbs.
This unit comes with a 1 HP electric motor, 110-115V single
phase. We use Torrington Needle Bearings and hardened steel
components throughout, (62 Rockwell). The cabinet is heavy
gauge steel with a Hammertone Green Finish.
FEATURES:
* Equipped with Pittsburg Roll set mounted
* Torrington Needle Bearings
* Hardened Steel Components throughout (62 Rockwell)
* Illuminated on/off switch
* Hardened Steel Guide Rolls
* Extended shaft available to add optional roll sets (Below)
OPTIONAL ACCESSORIES:
* $965.00 For optional Power Flanger attachment to mount to
top of machine
* $725.00 For optional set of Acme Double Seam Rolls
* $725.00 For Optional set of Drive Cleat Rolls
* $725.00 For Optional set of Right-Angle Rolls
MADE IN THE USA!!
2-YEAR WARRANTY!! (1-YEAR ON MOTOR)
