Top Seller

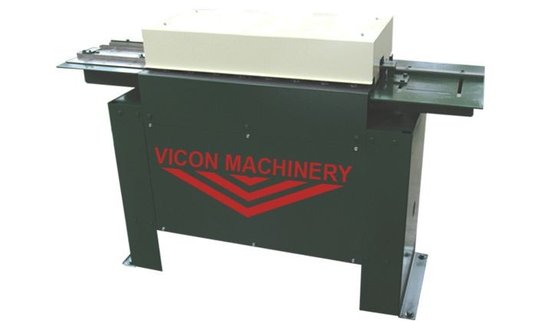

VICON V-8 with Flat "S"
Location:
McClellan Park, CA
Manufacturer:
Vicon
Model:
V-8 with Flat "S" Rolls

Specifications

Condition:
new
Stock number:
7352
Motor:
5 HP, 3 Phase Standard (or optional single phase)
Speed:
90 FPM
# of stations:
8
Available, they include:
standing seam, clinch connection
Subcategory:
Rollformers

Description

Model: V-8 with Flat "S" Rolls
# Of Stations: 8
Motor: 5 HP, 3 Phase Standard (or optional single phase)
Speed: 90 FPM
MACHINE COMES STANDARD EQUIPPED WITH:
* Flat "S" Rolls mounted Inboard
* (2) Additional Outboard spaces open for optional
tooling
FEATURES:
* Quietest machine in the industry
* Eight forming stations for all roll sets
* 5 HP motor coupled to an industrial oil bath gear
reducer for quiet longevity
* Heavy duty roller chain drive (no belts)
* Heavy duty 1 inch diameter stress proof roller shafts
* Large heavy duty bearings with inner races to protect
roll shafts and extend the life of the machine
* 90 - 100 feet per minute pitch speed
* Single phase or three phase electrics
* Heavy duty motor starter with thermal protection
overloads
The VICON V8 Rollformer produces connections that exceed the
standards set by SMACNA. Material is formed to produce
various types of connections.
The V8 rollformer can be tooled to form pittsburgh,
snaplock, slip and drives and acme. Other forms are
available, they include: standing seam, clinch connection,
7/16" flange and 1/4" edge in our 4 in 1 rolls.
OPTIONAL OUTBOARD ROLLSETS:
20 - 30 Gauge Male & Female Snaplock
20 - 30 Gauge Male Snaplock Only
20 - 30 Gauge Female Snaplock Only
20 - 28 Gauge 5/16" Pocket Pittsburgh
18 - 24 Gauge 7/16" Pocket Pittsburg
16 - 20 Gauge 7/16" Pocket Pittsburgh
20 - 28 Gauge Right Angle Flange 1/4-7/16"
16 - 22 Gauge Right Angle Flange 1/4-7/16"
22 - 28 Gauge 4-in-1 Rolls
20 - 28 Gauge Acme Lock (Double Seam)
16 - 22 Gauge Acme Lock (Double Seam)
INBOARD OPTIONS:
22 - 28 Gauge Reinforced "S" Cleat / inboard option
20 - 28 Gauge Drive Cleat / inboard option
OPTIONAL:
5-Gallon Sealant System for Sealing Pittsburg Lock-One Gun
S&Drive Slitter Attachment
Change to 3 HP Single Phase Motor (run at 45FPM), n/c
Change to 5 HP Single Phase Motor (run at 90FPM), + $$
100% MADE IN THE USA!!
