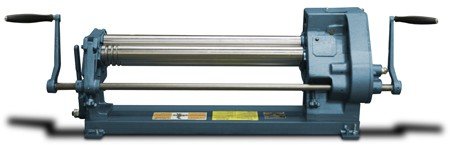

ROPER WHITNEY 416 36" x
Location:
McClellan Park, CA
Manufacturer:
Whitney
Model:
416
Capacity:
14 to 16 Gauge
Weight:
720 lbs

Specifications

Condition:
new
Stock number:
3190
Weight:
720 lbs
Optional:
NO. 416 Heavy-duty welded floor mount stand
Dimensions:
69"L X 19"W X 19"H
Roll diameter:
3"
Wiring grooves:
3/8, 1/2, 5/8
Max. sheet length:
36"
Capacity - mild steel:
14 to 16 Gauge
Minimum forming radius:
1.5"
Subcategory:
Rolls

Description

Model: 416
Capacity - Mild Steel: 14 to 16 Gauge
Max. Sheet Length: 36"
Roll Diameter: 3"
Gearing Ratio: 4:1
Minimum Forming Radius: 1.5"
Wiring Grooves: 3/8, 1/2, 5/8
Dimensions: 69"L X 19"W X 19"H
Weight: 720 lbs.
FEATURES:
The 3-Inch hand rolls are furnished with all three rolls
driven. Rear roll has three full length longitudinal
grooves. Machine operates through back shaft at 4:1 gear
reduction. Two handles supplied for heavy capacity forming.
Pexto Slip rolls are engineered for long life and dependable
accuracy.
Smooth rear roll (no grooves) optional
Wiring grooves in bottom and rear rolls: 3/8", ", 5/8"
* OPTIONAL: NO. 416 Heavy-duty welded floor mount stand
available
100% MADE IN THE U.S.A.!!
INCLUDES 3-YEAR FACTORY WARRANTY!!
