Top Seller
BAILEIGH PR-403 4' X 1/4",
Location:
McClellan Park, CA
Manufacturer:
Baileigh
Model:
PR-403
Weight:
4,180 lbs

Specifications

Condition:
new
Stock number:
6731
Motor:
3 hp
Power:
220V / 3-phase
Roll speed:
4.67 rpm
Forming width:
48"
Upper roll dia:
5.91"
Shipping weight:
4,180 lbs
Minimum forming dia:
8.86"
Shipping dimensions:
83" x 32" x 52"
Roll adjustment back:
Hydraulic
Subcategory:
Rolls

Description

Forming Width: 48"
Roll Speed: 4.67 rpm.
Upper Roll Dia.: 5.91"
Roll Adjustment Back: Hydraulic
Minimum Forming Dia: 8.86"
Motor: 3 hp
Power: 220V / 3-phase
Shipping Weight: 4,180 lbs.
Shipping Dimensions: 83" x 32" x 52"
DESCRIPTION:

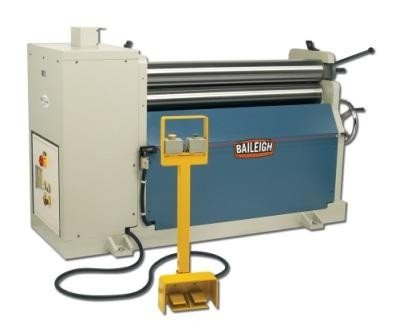

Every shop needs a good " mild steel roll former and the
PR-403 from Baileigh Industrial is the perfect choice. The
PR-403 plate roll has a maximum 4' forming width, which can
roll up to 3 gauge (1/4" mild sheet steel. This plate roll
machine is completely hydraulically driven for increased
durability and reliability. This machine uses 3 hp motor
that runs on 220 volts of 3 phase powers the industrial
grade hydraulic system. The PR-403 has all 3 rolls are
driven to help handle the capacity and finish the job
faster. The PR-403 also has an optional coning attachment
for creating conical bends.
To help with productivity, the PR-403 plate roll has a
digital readout. This readout tracks the position of the
back roll for increased accuracy and less waste. The top
roll has a very simple release mechanism to release the
finished work that has been wrapped around the top roll.
For your safety the PR-403 includes dual emergency stop
cables that are located on both the front and back of the
machine. The PR-403 plate bending roll offers a simple and
rugged design, offering the medium to small fabricator years
of quality service.
