TENNSMITH SR48P 4' X 16
Location:
McClellan Park, CA
Manufacturer:
TENNSMITH
Model:
SR48P
Capacity:
16 Gauge
Weight:
1100 lbs

Specifications

Condition:
new
Stock number:
1905
Motor:
3/4 HP, 220 or 440 Volt, 3 Phase, 60 Hz
Optional:
SINGLE PHASE, 220 VOLT, 60 HZ ELECTRICS
Dimensions:
77"L X 29"W X 50"H
Roll speed:
22 RPM / 17.28 SFPM
Wire grooves:
3/8, 1/2, 5/8 in
Shipping weight:
1100 lbs
Diameter of rolls:
3 in
Capacity, mild steel:
16 Gauge
Maximum forming length:
49 in
Minimum forming radius:
1-1/2 in
Subcategory:
Rolls

Description

Model: SR48P
Capacity, Mild Steel: 16 Gauge
Maximum Forming Length: 49 in.
Diameter of Rolls: 3 in.
Minimum Forming Radius: 1-1/2 in.
Wire Grooves: 3/8, 1/2, 5/8 in.
Gearing Ratio: 4 : 1
Roll Speed: 22 RPM / 17.28 SFPM
Motor: 3/4 HP, 220 or 440 Volt, 3 Phase, 60 Hz
Dimensions: 77"L X 29"W X 50"H
Shipping Weight: 1100 lbs.
OPTIONAL: SINGLE PHASE, 220 VOLT, 60 HZ ELECTRICS

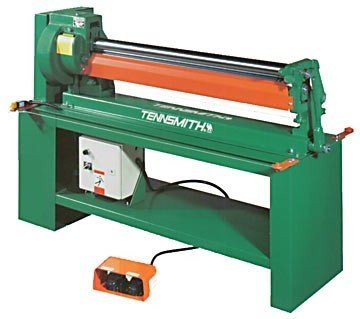

TENNSMITH's SR48P powered slip roll combines all the
features of our SR48 initial pinch roll with the productive
advantage of electric-powered drive for production forming
of curved parts and tubes made of 16-gauge and lighter sheet
metal. Drive power is supplied by a heavy-duty, industrial
quality gear reduction motor and roller chain directly to
the gear train.
The roll drive is controlled by a toggle-action, shrouded
foot pedal for instant forward and reverse action. The drive
motor is equipped with an electromagnetic brake to prevent
roll creep and over-forming. Electrical and operator safety
features include a full-length front and back wire cable
safety mechanism which instantly stops the rolls when
tripped, two magnetic motor starters, fully enclosed
electrical box with pilot light, insulated reinforced
conduit for all wiring and fully enclosed drive train.
The rolls are turned, ground and polished, high carbon
steel, providing rigidity and resistance to wear and
abrasion. The rolls and gears are mounted in hardened bronze
bushings for long life and precision operation. All three
rolls are gear driven to ensure even starting and feeding of
capacity materials. Convenient operating features include
large roll adjusting screws, scales for speeding repeat set-
up, a wide clearance top roll latch and an end-mounted
handle to lift the upper roll for easy material removal.
Wire grooves and three full-length starting grooves in the
rear roll are standard.
TENNSMITH's Model SR48P is the best value of any four-foot,
16-gauge powered roll on the market.
100% MADE IN THE U.S.A.!!
INCLUDES 3-YEAR FACTORY WARRANTY!!
