TENNSMITH SR48 4' X 16
Location:
McClellan Park, CA
Manufacturer:
TENNSMITH
Model:
SR48
Capacity:
16 Gauge
Weight:
1100 lbs

Specifications

Condition:
new
Stock number:
1904
Slip roll:
SR48
Dimensions:
77"L x 30"W x 22"H
Wire grooves:
3/8, 1/2, 5/8 in
Shipping weight:
1100 lbs
Diameter of rolls:
3 in
Capacity, mild steel:
16 Gauge
Maximum forming length:
49 in
Minimum forming radius:
1-1/2 in
Optional stand, shipping weight:
270 lbs
Subcategory:
Rolls

Description

Model: SR48
Slip Roll: SR48
Capacity, Mild Steel: 16 Gauge
Maximum Forming Length: 49 in.
Diameter of Rolls: 3 in.
Minimum Forming Radius: 1-1/2 in.
Wire Grooves: 3/8, 1/2, 5/8 in.
Gearing Ratio: 4 : 1
Dimensions: 77"L x 30"W x 22"H
Shipping Weight: 1100 lbs.
Optional Stand, Shipping Weight: 270 lbs.
OPTIONAL FLOOR STAND.

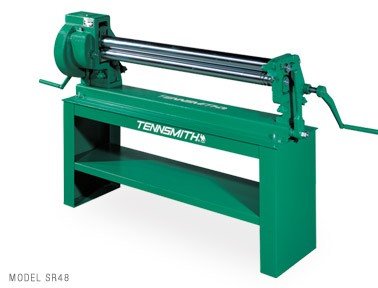

TENNSMITH's SR48 initial pinch slip roll is a heavy-duty
production tool for forming curved parts and tubes in 16-
gauge and lighter sheet metal.
The rolls are turned, ground and polished, high carbon
steel, providing rigidity and resistance to wear and
abrasion. The rolls and gears are mounted in hardened bronze
bushings for long life and precision operation. All three
rolls are gear-driven to ensure even starting and feeding of
capacity materials. The gearing features a 4:1 reduction
ratio for ease of operation in heavy materials and all gears
are fully enclosed for safety and protection from the
elements.
Convenient operating features include large roll adjusting
screws, scales for speeding repeat set-up, a wide clearance
top roll latch and an end-mounted handle to lift the upper
roll for easy material removal. Two crank handles are
provided for heavy capacity forming. Wire grooves and three
full-length starting grooves in the rear roll are standard.
TENNSMITH's Model SR48 is a heavy-duty, affordable tool
designed for many years of trouble-free service.
100% MADE IN THE U.S.A.!!
INCLUDES 3-YEAR FACTORY WARRANTY!!
