Top Seller

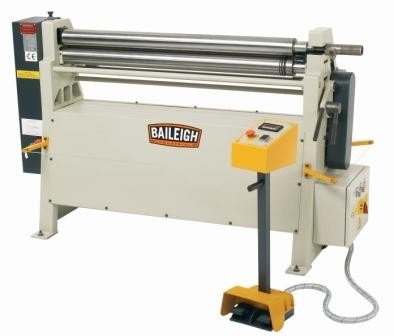

BAILEIGH PR-413 4' X 13
Location:
McClellan Park, CA
Manufacturer:
Baileigh
Model:
PR-413
Capacity:
13 ga. (.090")
Weight:
1,254 lbs

Specifications

Condition:
new
Stock number:
5998
Motor:
2 hp
Power:
220V / 1-phase
Roll speed:
6 rpm
Wire grooves:
Yes
Forming width:
48"
Upper roll dia:
3.50"
Shipping weight:
1,254 lbs
Minimum forming dia:
5.25"
Shipping dimensions:
75" x 29" x 46"
Roll adjustment back:
Hydraulic
Capacity (mild steel):
13 ga. (.090")
Subcategory:
Rolls

Description

Model: PR-413
Forming Width: 48"
Roll Speed: 6 rpm.
Upper Roll Dia.: 3.50"
Roll Adjustment Back: Hydraulic
Minimum Forming Dia: 5.25"
Motor: 2 hp
Wire Grooves: Yes
Capacity (Mild Steel): 13 ga. (.090")
Power: 220V / 1-phase
Shipping Weight: 1,254 lbs.
Shipping Dimensions: 75" x 29" x 46"
DESCRIPTION:
Do you currently have a slip roll but are constantly being
bogged down when you need to form something a little
thicker. That is where the PR-413 roll former comes in.
This economical plate roll has the ability to handle up to
13 gauge mild steel over its whole 4' length. This
electrically driven plate roll is powered by a 2 hp 220 volt
single phase motor allowing it to be used almost anywhere.
Even though it is electrically driven the back roll movement
is controlled by a hydraulic system. This industrial grade
system allows the back roll to move up and down as well as
tilt left and right when the finished product calls for
coning. A digital readout is also provided to identify the
position of the back roll as well. Three wire grooves are
also included for those time that wire rings are need to be
formed.
The operation of the PR-413 roll former is all done on a
convenient foot pedestal. Once the pinch is set the foot
pedal contains forward and reverse pedal as well as buttons
to control the up and down movement of the back roll. For
safety, the PR-409 has emergency stop cable on the front and
back of the machine.
