BAILEIGH PR-409 4' x 9
Location:
McClellan Park, CA
Manufacturer:
Baileigh
Model:
PR-409
Capacity:
9 ga. (.150")
Weight:
3,740 lbs

Specifications

Condition:
new
Stock number:
5999
Motor:
2 hp
Power:
220V / 3-phase
Roll speed:
5.85 rpm
Forming width:
48"
Upper roll dia:
4.75"
Shipping weight:
3,740 lbs
Minimum forming dia:
7.125"
Shipping dimensions:
60" x 37" x 11"
Roll adjustment back:
Hydraulic
Capacity (mild steel):
9 ga. (.150")
Subcategory:
Rolls

Description

Model: PR-409
Forming Width: 48"
Roll Speed: 5.85 rpm.
Upper Roll Dia.: 4.75"
Roll Adjustment Back: Hydraulic
Minimum Forming Dia: 7.125"
Motor: 2 hp
Capacity (Mild Steel): 9 ga. (.150")
Power: 220V / 3-phase
Shipping Weight: 3,740 lbs.
Shipping Dimensions: 60" x 37" x 11"
DESCRIPTION:

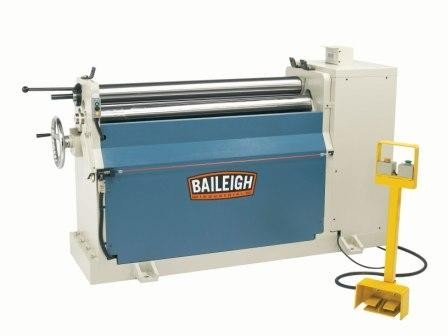

The PR-409 single pinch hydraulic plate roll from Baileigh
Industrial is a great roll former that can form 9 gauge mild
steel to a 7" ring on its full length of 4'. The PR-409 is
operated entirely by an industrial grade hydraulic system.
A 2 hp 220 volt three phase motor controls the system which
runs the movement of the back roll as well as the rolling of
all three forming rolls.
Since all three rolls are driven, this cuts down on forming
time that the operator has to spend on each job. The
operation of the PR-409 hydraulic plate roll is all done on
a convenient foot pedestal. Once the pinch is set the foot
pedal contains forward and reverse pedal as well as buttons
to control the up and down movement of the back roll. A
digital readout is also provided to identify the position of
the back roll as well. If you have projects that need to
form cones, the PR-409 has an optional coning attachment
available. For safety, the PR-409 has emergency stop cable
on the front and back of the machine.
