Top Seller

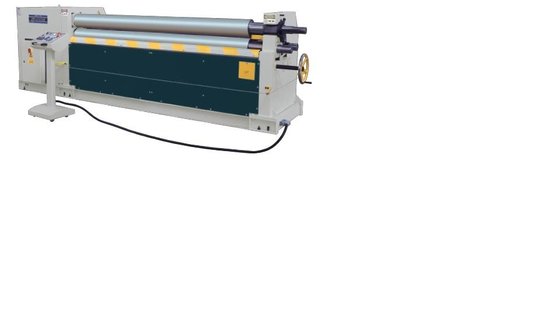

AMERECON SRS-10-160 10' X 12
Location:
McClellan Park, CA
Manufacturer:
Capacity
Model:
SRS-10-160
Capacity:
10' X 11 GA Capacity
Weight:
5830 lbs

Specifications

Condition:
new
Stock number:
5755
Motors:
5 and 1-1/2
Weight:
5830 lbs
Capacity:
10' X 11 GA Capacity
Dimensions:
191" X 29" X 42"H
Rolling speed:
12 FPM
Diameter of all rolls:
6.30"
Overall bending length:
120"
Subcategory:
Rolls

Description

Model: SRS-10-160; 3-Roll Initial-Pinch Type Rolls
Capacity: 10' X 11 GA Capacity
Overall Bending Length: 120"
Diameter Of All Rolls: 6.30"
Rolling Speed: 12 FPM
Motors: 5 and 1-1/2
Dimensions: 191" X 29" X 42"H
Weight: 5830 lbs.
FEATURES:
* Power Rear Roll Adjustment with motor and control
* Heavily proportioned, welded steel frame for rigidity
* Swing out top roll for removal of finished cylinder
* Brake-motor for rapid stopping of rolls rotations
* Moovable control console
* Cone bending attachment
* Rolls tiltable to facilitate cone rolling
* Handwheel for rapid adjustment of lower front roll
* Roll shaft extended for optional bar/angle rolls
* Scale indicator for position of the bending (rear) roll
* Manual central lubrication system
* Electrics for 3 phase, 60 hz, 220/440 volt
* Low voltage at the control
* Emergency Stop Control
* Safety cables at front & rear of machine
