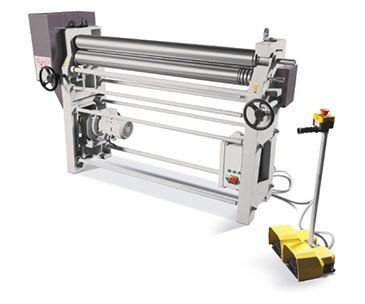

SAHINLER MSM 1550-90 5' x
Location:
McClellan Park, CA, USA
Price:
No price
Manufacturer:
Sahinler
Model:
MSM 1550-90
Capacity:
5' X 14 Gauge Mild Steel
Weight:
1496 lbs

Specifications

Condition:
new
Stock number:
229
Motor:
1.5 HP, 3 Phase, 220/440 Volt, 60 HZ
Capacity:
5' X 14 Gauge Mild Steel
Dimensions:
89"L X 33"W X 45"H
Rolling speed:
10-1/2' Per Minute
Approx. weight:
1496 lbs
Diameter of rolls:
3.54"
Overall bending length:
60"
Rolls grooved for round bar:
3/8", 1/2", 5/8"
Subcategory:
Rolls

Description

Model: MSM 1550-90
Capacity: 5' X 14 Gauge Mild Steel
Diameter of Rolls: 3.54"
Overall Bending Length: 60"
Rolling Speed: 10-1/2' Per Minute
Motor: 1.5 HP, 3 Phase, 220/440 Volt, 60 HZ
Low Voltage at the Controls
Rolls Grooved For Round Bar: 3/8", 1/2", 5/8"
Dimensions: 89"L X 33"W X 45"H
Approx. Weight: 1496 lbs.
Their design has gained worldwide acceptance and, although
used for bending lighter sheet materials, they are built for
durability and efficiency while still being easy to operate
and low in cost. Strong cast-iron frames are used on all
sizes for rigidity and stability. The roll shafts are
journaled in long-life bronze bearings. The upper and lower
rolls are driven by a brake-motor through a heavily
proportioned gear assembly, producing a single rolling speed
and effecting prompt stopping of the rotation of the rolls.
The lower front roll, which is used for clamping the work-
piece, and the rear roll, which is used for setting the
bending radius, are each adjusted by a single handwheel.
Both handwheels are conveniently located for ease of
operation. The use of a single handwheel for each adjustment
avoids the operator's having to move from one end of the
machine to the other to adjust each roll. The rear roll can
be readily tilted to facilitate the cone bending procedure.
A secure locking device keeps the upper roll in proper
position during rolling and is easily released to allow the
roll to be swung out for removal of the rolled cylinder. A
moveable foot control on a trailing lead adds to convenience
and ease of operation by allowing the operator to position
himself most advantageously. The rolls are grooved for three
sizes of round bar. The machine needs only to be anchored
and connected to the power supply and is ready to operate.
STANDARD FEATURES
- Brake Motor
- Cone Bending Attachment
- Electrics for 3/60/220/440
- Low Voltage At The Controls
- Portable Push Button Control And Emergency-Stop Palm
Button
- Handwheels For Roll Adjustments
- Lockable Swing-Out Upper Roll
- 3 Grooves For 3/8", 1/2", And 5/8" Round Bar
- Scale To Indicate The Positions Of The Rear Roll
OPTIONAL EQUIPMENT
- Electronic Digital Readout (LED) For The Positions Of
the Rear Roll Power Rear Roll Adjustment
- Induction Hardened Rolls
