Top Seller
BAILEIGH PR-514 5' X 14
Location:
McClellan Park, CA
Manufacturer:
Baileigh
Model:
PR-514
Capacity:
14 ga. (.075")
Weight:
1,243 lbs

Specifications

Condition:
new
Stock number:
5789
Motor:
2 hp
Power:
220V / 1-phase
Roll speed:
6 rpm
Wire grooves:
Yes
Forming width:
60"
Upper roll dia:
3.50"
Shipping weight:
1,243 lbs
Minimum forming dia:
5.25"
Shipping dimensions:
89" x 29" x 56"
Roll adjustment back:
Hydraulic
Capacity (mild steel):
14 ga. (.075")
Subcategory:
Rolls

Description

Model: PR-514
Forming Width: 60"
Roll Speed: 6 rpm.
Upper Roll Dia.: 3.50"
Roll Adjustment Back: Hydraulic
Minimum Forming Dia: 5.25"
Motor: 2 hp
Wire Grooves: Yes
Capacity (Mild Steel): 14 ga. (.075")
Power: 220V / 1-phase
Shipping Weight: 1,243 lbs.
Shipping Dimensions: 89" x 29" x 56"
DESCRIPTION:

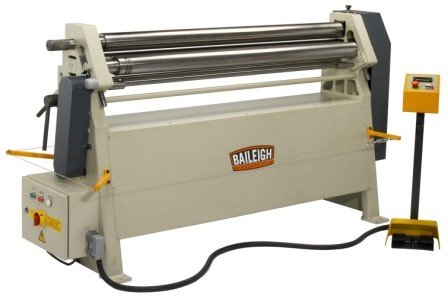

Baileigh Industrial sheet metal equipment has always offered
great value in its line of machinery, and the PR-514 plate
forming machine is no exception. The PR-514 is the perfect
plate roll for small and medium rolling applications. This
plate forming machine has a useful width of 5' and has a
capacity of 14 gauge mild steel sheet metal.
The PR-514 has a 2 HP 220 volt single phase motor that
transfers power directly to the driven rolls. A second
hydraulic motor controls the movement of the back roll. The
operator controls all movements on the PR-514 via a remote
pedestal. This control pedestal has foot pedal controls,
and houses the buttons for advancing or retracting the back
roll position. Back roll position can be monitored on the
digital readout that is position at the head of the machine
so no matter where you are operating the PR-514, the
operator has a good line of sight to it.
