- Stock number:
- 10' X 9 Gauge Mild Steel
- Mild steel:
- 55,000 PSI TENSILE
- Hydr. pump hp:
- Overall width:
- Roll diameter:
- Roll drive hp:
- Approx. weight:
- 8,300 lbs. Gross / 6930 Net
- Overall height:
- Overall length:
Capacity: 10' X 9 Gauge Mild Steel
Roll Diameter: 7"
Roll Drive HP: 5
Hydr. Pump HP: 2
Overall Length: 204"
Overall Width: 46"
Overall Height: 60"
Approx. Weight: 8,300 lbs. Gross / 6930 Net
* MILD STEEL: 55,000 PSI TENSILE
* Hardened Rolls
* Hydraulic drop end
* LED readout for roll position
* Cone forming attachment
* Remote forward / reverse control
* Roller bearings on roll shafts
* Hydraulic powered rear roll adjustment
* Power tilt of rear bending roll
* Power pinch roll adjustment
* Safety cut off cable

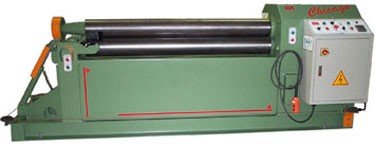

Chicago Dreis & Krump offers initial pinch bending rolls for
rolling sheet metal and light plate. Initial Pinch Rolls
with electric/hydraulic power are capable of rolling full or
partial cylinders from 16 gauge mild steel to 1/2 inch
plate. The lower pinch roll with the special hydraulic
powered "quickgap set" is a real time saver during set up.
The pinch roll is also tiltable for cone rolling. Hydraulic
operation of the drop end for ease of material removal is an
As with all Chicago bending rolls, the frames are made of
heavy welded construction. The rolls are made from forged
steel and heat treated to RC 45. Spherical roller bearings
on all three rolls minimize friction loss. The rear bending
roll is equipped with an LED readout indicting its position
for accurate forming. Positioning of the rear bending roll
is done hydraulically and allows the operator to tilt it for
cone forming. An emergency stop button and keylock on/off
power switch are centrally located on the control panel.
