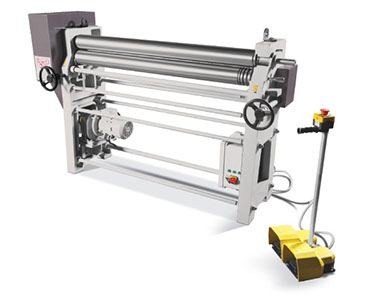

SAHINLER MSM-1050-100 3' X 10
Location:
McClellan Park, CA
Manufacturer:
Sahinler
Model:
MSM-1050-100
Capacity:
3' X 10 Ga
Weight:
1070 lbs

Specifications

Condition:
new
Stock number:
1301
Electrics:
3 PH, 60 HZ, 220/440
Dimensions:
59"L X 33"W X 45"H
Approx. weight:
1070 lbs
Capacity, mild steel:
3' X 10 Ga
Diameter of all rolls:
3.94"
Subcategory:
Rolls

Description

Model: MSM-1050-100
Capacity, Mild Steel: 3' X 10 Ga.
Diameter Of All Rolls: 3.94"
Electrics: 3 PH, 60 HZ, 220/440
Dimensions: 59"L X 33"W X 45"H
Approx. Weight: 1070 lbs.
STANDARD FEATURES
-Brake Motor
-Handwheels for Roll Adjustments
-Lockable Swing-Out Upper Roll
-3 Grooves for 3/8", 1/2", and 5/8" Round Bar
-Cone Bending Attachment
-Scale to Indicate the Positions of the Rear Roll
-Moveable Foot Control with Emergency-Stop Palm Button
-Electrics for 3/60/220/440
-Low Voltage at the Controls
OPTIONAL EQUIPMENT
-Electronic Digital Readout (LED) for the Positions of the
Rear Roll
- Induction Hardened Rolls
Their design has gained worldwide acceptance and, although
used for bending lighter sheet materials, they are built for
durability and efficiency while still being easy to operate
and low in cost. Strong cast-iron frames are used on all
sizes for rigidity and stability. The roll shafts are
journaled in long-life bronze bearings. The upper and lower
rolls are driven by a brake-motor through a heavily
proportioned gear assembly, producing a single rolling speed
and effecting prompt stopping of the rotation of the rolls.
The lower front roll, which is used for clamping the work-
piece, and the rear roll, which is used for setting the
bending radius, are each adjusted by a single handwheel.
Both handwheels are conveniently located for ease of
operation. The use of a single handwheel for each adjustment
avoids the operator's having to move from one end of the
machine to the other to adjust each roll. The rear roll can
be readily tilted to facilitate the cone bending procedure.
A secure locking device keeps the upper roll in proper
position during rolling and is easily released to allow the
roll to be swung out for removal of the rolled cylinder. A
moveable foot control on a trailing lead adds to convenience
and ease of operation by allowing the operator to position
himself most advantageously. The rolls are grooved for three
sizes of round bar. The machine needs only to be anchored
and connected to the power supply and is ready to operate.
