BAILEIGH SR-5016M 50" x 16
Location:
McClellan Park, CA
Manufacturer:
Baileigh
Model:
SR-5016M
Capacity:
16 ga. (.060")
Weight:
642 lbs

Specifications

Condition:
new
Stock number:
6730
Power:
Manual
Stand:
Optional
Wire grooves:
Yes
Forming width:
50"
Upper roll dia:
3"
Shipping weight:
642 lbs
Minimum forming dia:
4.5"
Shipping dimensions:
65" x 16" x 20"
Capacity (mild steel):
16 ga. (.060")
Subcategory:
Rolls

Description

Model: SR-5016M
Forming Width: 50"
Upper Roll Dia.: 3"
Minimum Forming Dia: 4.5"
Wire Grooves: Yes
Stand: Optional
Capacity (Mild Steel): 16 ga. (.060")
Gear Ratio: 3:1
Power: Manual
Shipping Weight: 642 lbs.
Shipping Dimensions: 65" x 16" x 20"
DESCRIPTION:

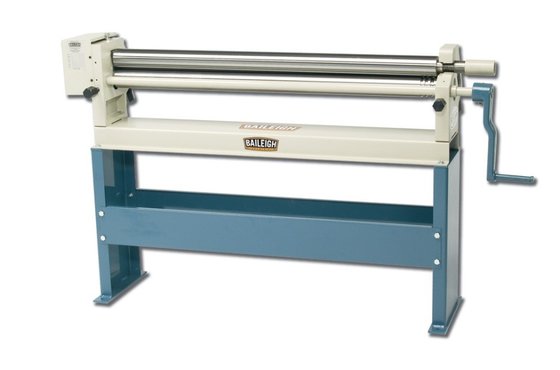

The SR-5016M slip roll has a forming width of 50" with a
capacity of 16 gauge mild steel. This is a three roll
machine with two driven rolls that are made of polished
carbon steel offering years of reliable service. This is the
perfect sheet metal tool to have in any HVAC shop or general
fabrication shop when sheet metal forming is required. The
frame is composed of two heavy solid steel frames that are
electro-welded to a heavy base that allows for no deflection
when bending across the entire useful width at full capacity
(16 gauge mild steel sheet metal). This highly rigid
construction will provide precision roll bending for many
decades of production. This sheet metal roller comes
standard with three wire or rod grooves. For rolling sheet
metal simply place the unbent piece into the bender and
bring the back roll up to the desired position, then start
your bend. This sheet metal bender is easy to adjust and
operate, making it simple to work with. Rigidity and
implicity define the SR-5016M roll bender.
