Top Seller
BAILEIGH SR-5016 50" X 16
Location:
McClellan Park, CA
Manufacturer:
Baileigh
Model:
SR-5016
Capacity:
16 ga. (.060")
Weight:
770 lbs

Specifications

Condition:
new
Stock number:
5871
Motor:
1 hp
Power:
220V / 1-phase
Stand:
Yes
Roll speed:
16 rpm
Wire grooves:
Yes
Forming width:
50"
Upper roll dia:
3"
Shipping weight:
770 lbs
Minimum forming dia:
4.5"
Shipping dimensions:
67" x 26" x 46"
Capacity (mild steel):
16 ga. (.060")
Subcategory:
Rolls

Description

Model: SR-5016
Forming Width: 50"
Roll Speed: 16 rpm.
Upper Roll Dia.: 3"
Minimum Forming Dia: 4.5"
Motor: 1 hp
Wire Grooves: Yes
Stand: Yes
Capacity (Mild Steel): 16 ga. (.060")
Power: 220V / 1-phase
Shipping Weight: 770 lbs.
Shipping Dimensions: 67" x 26" x 46"
DESCRIPTION:

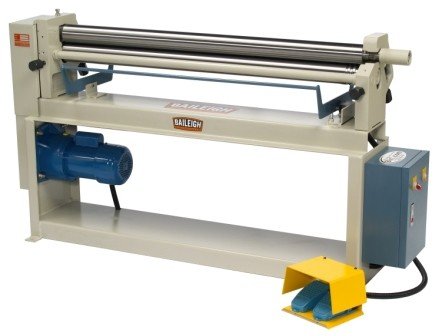

Every fabrication shop needs the ability to roll metal. The
SR-5016 electric slip roll from Baileigh Industrial is a 50
inch roll former that can roll 16 gauge mild steel with
ease. This is the perfect roller for any HVAC shop or
general fabrication shop that like to save time and effort
when rolling sheet metal. Powered by 1 hp 220 volt single
phase motor controls the movement of the two driven roll and
assures that the SR-5016 has enough power for any job in
just about any location.
The upper portion of main frame of the SR-5016 electric slip
roll is made from solid plate steel that has been precisely
machined to be the same on the left and right sides of the
machine. This keeps all three rolls in perfect alignment
during the bending process. The all steel lower base of the
SR-5016 is integrated into the uprights and is fully welded
for rigidity.
The SR-5016 electric slip roll uses a foot pedal for both
left and right rolling applications and has integrated
emergency stops to help maintain a safe workplace. If wire
rolling is needed, the SR-5016 also comes with three wire
grooves.
