Top Seller

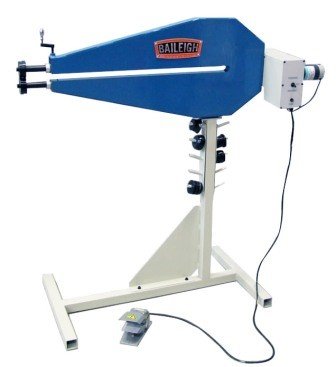

BAILEIGH BR-18E24 POWER ROTARY FORMER,
Location:
McClellan Park, CA
Manufacturer:
Baileigh
Model:
BR-18E24
Weight:
150 lbs

Specifications

Condition:
new
Stock number:
6777
Power:
110V
Stand:
Included
Motor hp:
1/8 hp
Roll holder:
Included
Throat depth:
24"
Shipping weight:
150 lbs
Shipping dimensions:
45" x 26" x 13"
Adjustable depth stop:
Included
Max. thickness (mild steel):
16 gauge
Subcategory:
Power rotary
Subcategory 2:
Rotary machines

Description

Model: BR-18E-24
Motor Hp: 1/8 hp
Max. Thickness (Mild Steel): 16 gauge
Roll Holder: Included
Throat Depth: 24"
Stand: Included
Adjustable Depth Stop: Included
Power: 110V
Shipping Weight: 150 lbs.
Shipping Dimensions: 45" x 26" x 13"
DESCRIPTION:
The BR-18E-24 power bead roll has a capacity of 16 gauge
mild steel and 14 gauge aluminum. Powered by 110V this
variable speed bead roller is perfect for most beading
applications. The 24" throat depth is perfect for putting
beads in 4'x 8' sheets of sheet metal but is compact enough
to make even the most intricate beading patterns. The frame
is made from heavy plate steel that is fully welded for
further rigidity. The bead depth is adjustable via the top
roll. Baileigh Industrial offers many sets of tooling for
the BR-18E-24 bead roll and the shaft diameter is _" and
will fit most commercially available roll sets.
All moving parts on the BR-18E-24 have bronze bushings for
long life. A powerful 110 Volt industrial grade motor and
gearbox drive the rolls forward or reverse. Control of this
power bead roll is by a variable speed foot pedal that
allows the operator to have both hands free to work the
material.
Like most Baileigh Industrial bead rolls, the BR-18E-24
comes standard with a depth stop for perfectly straight
beads, and a heavily constructed floor stand that includes a
die rack. This bead roll is built to last.
