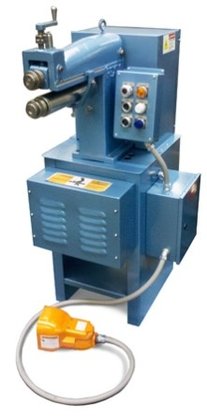

ROPER WHITNEY 3617 ROTARY FORMER,
Location:
McClellan Park, CA
Manufacturer:
Whitney
Model:
3617
Capacity:
18 Gauge
Weight:
475 lbs

Specifications

Condition:
new
Stock number:
222
Motor:
3/4 HP, 230 or 460 Volt, 3 Phase
Throat:
13"
Weight:
475 lbs
Capacity:
18 Gauge
Roll speed:
40 RPM
Distance between ctrs:
3"
Subcategory:
Power rotary
Subcategory 2:
Rotary machines

Description

Model: 3617
Capacity: 18 Gauge
Throat: 13"
Distance Between Ctrs: 3"
Roll Speed: 40 RPM
Motor: 3/4 HP, 230 or 460 Volt, 3 Phase
Weight: 475 lbs.
* Versatile machine designed for deep throat (Up to 13")
beading crimping, and other roll operations.
* Up to 18 gauge material. Back-geared, with steel horn,
bronze bushed bearing and 1-piece frame. Mounted on floor
stand w/ adjustable motor mount, "V" belt drive, and 3/4
H.P. geared head motor.
* Unit includes gauges and spacing collars for all
operations except flanging. Rolls ordered separately.
ROLL SETS ARE ALL SOLD SEPARATELY
100% MADE IN THE U.S.A.!!
INCLUDES 3-YEAR FACTORY WARRANTY!!
