POWER ROTARY MACHINE ROTARY MACHINE,
Location:
McClellan Park, CA
Manufacturer:
N/A
Model:
POWER ROTARY MACHINE
Weight:
450 lbs

Specifications

Condition:
new
Stock number:
2246
Throat:
11"
Weight:
450 lbs
Optional electrics:
(440V 3PH)
Subcategory:
Power rotary
Subcategory 2:
Rotary machines

Description

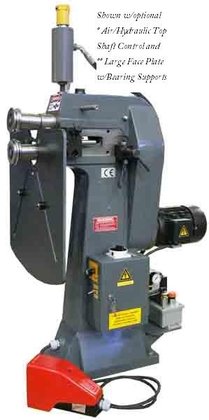

Model: EMT-7R NEW Power Rotary Machine
(Includes ONE SET - 3/8" Single Bead Rolls FREE )
Throat: 11"
Mild Steel Capacity (18GA Stainless Steel): 14 Gauge
Sensorless Vector Variable Speed Drive
(High torque at low speed!)
Forward/Reverse Switch
Electrics: Your Choice: 230V 3PH or 230V 1PH or 110V 1PH
440 3ph +$300
Weight: 450 lbs.
OPTIONS:
* Single Bead Rolls (3/16", 1/4", 1/2")
* HEAVY Crimping Rolls (1-1/2") 16GA/18GA
* LIGHT Crimping Rolls (20GA & lighter)
* Modified Bead Rolls for Combination Bead & Crimp
* Tap In (Starter Collar) Rolls
* Easy Edger Rolls
* NEW! Ogee Bead Rolls (1/4" Bead)
* Saddle Tap Rolls c/w Special Backgauge Collar
* Smooth Face Flattening Rolls
* Knurled Face Flattening Rolls
* Elbow Edging (Adjustable Elbows)
* Offset Rolls
* Burring Rolls
* 1/4" Flanging Rolls
* 1/2" #20 Smooth Flanging Rolls (20Ga. & Heavier)
* 1/2" #20 KNURLED Flanging Rolls (better on lighter gauges)
* Slitting Rolls
* Spin In Collar Rolls (22GA & lighter)
* Base (Raises working height from 31-1/2 - 42")
* Optional Electrics: (440V 3PH)
* Foot Pedal Controlled Air Cylinder Top Shaft Control
c/w Depth Stop (Not to be used with #20 Flange Rolls or
Spin In Rolls)
***Foot Pedal Controlled Air Over Oil Hydraulic Cylinder
Top Shaft Control***
***Programmable Automatic Air Over Oil Hydraulic Cylinder
Top Shaft Control***
***Spring Loaded Pipe Support Stand ***
* Larger Backstp Plate 20"x20"
c/w Internal Bearing Supports
