Top Seller
KMT CT350AV 14", HIGHSPEED SAW,
Location:
McClellan Park, CA
Manufacturer:
KMT
Model:
CT350AV
Motor:
2.5 HP
Weight:
400 lbs

Specifications

Condition:
new
Stock number:
2361
Note:
This Machine will NOT cut ANY steel! Don't even think
Motor:
2.5 HP
Round:
4.75"
Square:
4.5"
Weight:
400 lbs
Round 2:
4.5"
Round 4:
3"
Square 2:
4"
Square 4:
2.75"
Rectangular:
7.5" X 3.5"
Spindle rpm:
1800/3600 RPM
Work height:
35.25"
Rectangular 2:
5.9" X 2.75"
Rectangular 4:
7" X 2.25"
Max vise opening:
8"
Max blade (inches):
14"
Electricals (specify one):
208, 220, 230, 440, 480, 3 PH
Subcategory:
Coldsaws

Description

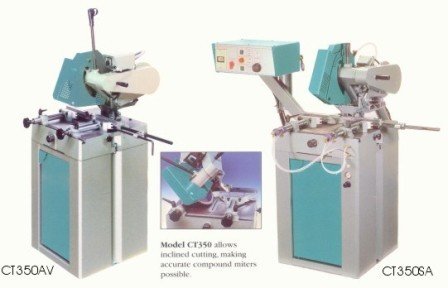

Model: CT350AV (Manual Operation with Air Vise)
Motor: 2.5 HP
Electricals (Specify One): 208, 220, 230, 440, 480, 3 PH
Max Blade (Inches): 14"
Spindle RPM: 1800/3600 RPM
Max Vise Opening: 8"
Weight: 400 lbs.
Work Height: 35.25"
CAPACITIES:
@ 90 Degrees:
Round: 4.75"
Square: 4.5"
Rectangular: 7.5" X 3.5"
@ 45 Degrees (R):
Round: 4.5"
Square: 4"
Rectangular: 5.9" X 2.75"
@ 45 Degrees (L):
Round: 4.5"
Square: 4"
Rectangular: 5.9" X 2.75"
@ 45 Deg. Vert (L):
Round: 3"
Square: 2.75"
Rectangular: 7" X 2.25"
FEATURES:
* The CT 350 Series machines are high speed circular saws
for aluminum extrusions and other non-ferrous materials.
These machines feature swiveling capability for mitering and
swiveling/tilting capability for compound mitering.
* The machine operates manually with Two Quick-Clamping Air
Vises.
NOTE: This Machine will NOT cut ANY steel! Don't even think
about it!
STANDARD EQUIPMENT:
* Heavy Duty Drive, TEFC Motor
* 24 Volt Controls
* Heavy Duty Drive
* Preset stops, 0,15,30,45 degrees
* Removable extruded special jaws
* Length stop assembly
* Carbide tipped Blade
* Built in spray mist coolant
* Operators Tools
* All Safety Guards
OPTIONAL ACCESSORIES:
AC100 Freestanding Roller Conveyor 12" wide x 5' long,
1000 lb.
AC101 Freestanding Roller Conveyor 12" wide x 10' long,
2000 lb.
AC133 Custom Infeed/Outfeed Roller Conveyor, 12" wide x 6'
long cover plates between rollers, coolant return through
micro-adjustable legs, mounted on machine
AC103 Additional 6' section for above conveyor
AC134 Custom Outfeed Roller Conveyor with built in
measuring system, 12" wide x 6' long, cover plates between
rollers, coolant return through, micro-adjustable legs,
mounted to machine
AC105 Additional 6' section for above conveyor
