Top Seller
JET CS-315 12.5", MANUAL COLD
Location:
McClellan Park, CA
Manufacturer:
JET Tools saws
Model:
CS-315
Motor:
2HP, 220V, 3Ph
Weight:
390 pound

Specifications

Condition:
new
Stock number:
7674
Motor:
2HP, 220V, 3Ph
Width:
40 inch
Height:
72 inch
Length:
40 inch
Net weight:
390 pound
Stock number:
414227
Blade size (in.):
315mm x 32mm x 2mm
Blade speeds (rpm):
52 , 104
Overall dimensions:
40L x 40W x 70H
Round at 45 degrees (in.):
3-3/8 (tube), 2 (solid)
Round at 90 degrees (in.):
3-3/8 (tube), 2 (solid)
Maximum vise opening (in.):
4.7
Square at 45 degrees (in.):
3-1/16 x 3-1/16 (tube), 2-1/4 x
Square at 90 degrees (in.):
3.25 x 3.25 (tube), 3.2 x 3.2
Cutting capacity solid (in.):
2
Cutting capacity tubing (in.):
3-3/8
Rectangle at 45 degrees (in.):
2-1/4 x 2-1/4 (tube), 2-1/4
Rectangle at 90 degrees (in.):
3-1/6 X 3-1/16 (tube), 4 x
Subcategory:
Coldsaws

Description

Model: CS-315
Stock Number: 414227
Cutting Capacity Solid (in.): 2
Cutting Capacity Tubing (in.): 3-3/8
Round at 90 Degrees (in.): 3-3/8 (tube), 2 (solid)
Round at 45 Degrees (in.): 3-3/8 (tube), 2 (solid)
Rectangle at 90 Degrees (in.): 3-1/6 X 3-1/16 (tube), 4 x
3-1/16 (solid)
Square at 90 Degrees (in.): 3.25 x 3.25 (tube), 3.2 x 3.2
(solid)
Blade Size (in.): 315mm x 32mm x 2mm
Blade Speeds (RPM): 52 , 104
Maximum Vise Opening (in.): 4.7
Motor: 2HP, 220V, 3Ph
Rectangle at 45 Degrees (in.): 2-1/4 x 2-1/4 (tube), 2-1/4
x 3-1/16 (solid)
Square at 45 Degrees (in.): 3-1/16 x 3-1/16 (tube), 2-1/4 x
2-1/4 (solid)
Overall Dimensions: 40L x 40W x 70H
Height: 72 inch
Width: 40 inch
Length: 40 inch
Net Weight: 390 pound

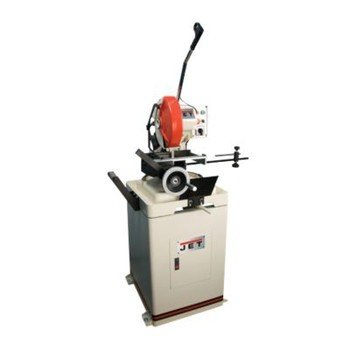

The JET CS-315 Manual Cold Saw features durable cast iron
construction with 2 cutting speeds. Miter cuts are easily
attained by the head that rotates 90 degrees left and 45
degrees right. Cutting solids, tubing and structural shapes
happens quickly and leaves a smooth, mill-like finish. Burr-
free cuts are attained using the self-centering vise. JET's
industry leading 2-year warranty is also standard.
FEATURES:
* Miter up to 135 degrees
* Heavy duty cast iron frame base with a cast saw head
* Long actuating handle gives the operator a lot of
leverage
* Clamping system operation is conducted with a cam-handle
for quick release
* Integral coolant system
2-YEAR FACTORY WARRANTY INCLUDED!!
