Top Seller

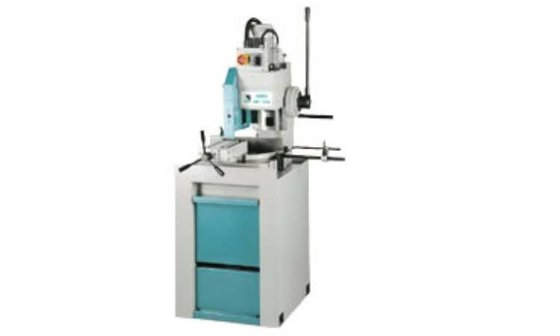

KMT C316 12", VERTICAL COLD
Location:
McClellan Park, CA
Manufacturer:
KMT
Model:
C316
Weight:
800 lbs

Specifications

Condition:
new
Stock number:
5288
Hp:
2.5
90 deg:
4"
Weight:
800 lbs
90 deg 2:
3.25"
90 deg 3:
3"
90 deg 4:
2"
90 deg 5:
3" x 5.75" W
Max blade:
12.5"
45 deg (l):
4"
45 deg (r):
4"
60 deg (r):
3.5"
Electrical:
220/3ph
Spindle rpm:
17/33
Work height:
35.25"
45 deg (l) 2:
3.25"
45 deg (l) 3:
2"
45 deg (l) 4:
1.5"
45 deg (l) 5:
3"x 4" W
45 deg (r) 2:
3.25"
45 deg (r) 3:
2"
45 deg (r) 4:
1.5"
45 deg (r) 5:
3" x 4"
60 deg (r) 2:
3"
60 deg (r) 3:
1.5"
60 deg (r) 4:
1"
60 deg (r) 5:
2.75" x 3" W
Coolant capacity:
5 gal
Max vise opening:
7.125"
Subcategory:
Coldsaws

Description

Model: C316
HP: 2.5
Electrical: 220/3ph
Max Blade: 12.5"
Spindle RPM: 17/33
Max Vise Opening: 7.125"
Weight: 800 lbs
Coolant Capacity: 5 gal
Work Height: 35.25"
CAPACITIES:
ROUND:
90 deg: 4"
45 deg (L): 4"
45 deg (R): 4"
60 deg (R): 3.5"
SQ. TUBING:
90 deg: 3.25"
45 deg (L): 3.25"
45 deg (R): 3.25"
60 deg (R): 3"
SOLID ROUND (Mild Steel):
90 deg: 3"
45 deg (L): 2"
45 deg (R): 2"
60 deg (R): 1.5"
SOLID ROUND (Stainless):
90 deg: 2"
45 deg (L): 1.5"
45 deg (R): 1.5"
60 deg (R): 1"
RECTANGULAR TUBE:
90 deg: 3" x 5.75" W
45 deg (L): 3"x 4" W
45 deg (R): 3" x 4"
60 deg (R): 2.75" x 3" W
FEATURES:
* The C316 Series features rugged heavy duty vertical column
circular sawing machines with saw frme swiveling capability
for mitering.
* Model C 316 Completely manual operation.
Model C 316AV Manual sawing operation with quick clamping of
air vise.
* The vertical column construction provides extremely stable
saw frame guidance and stability, with vibration free
sawing!
* The machine can operate in a conventional 90 cutoff mode
for conventional sawing, and with a simple turn of a locking
lever, the saw frame can be swiveled to any desired angle up
to 45 left or 60 right for miter sawing. The mitering
device carries a highly visible scale, and comes equipped
with a preset stop for accurately returning to zero.
STANDARD EQUIPMENT:
* TEFC Motor
* Totally Enclosed Transmission
* 24 Volt Controls
* HSS Sawblade
* Built-in Flood Coolant
* All Safety Guards
* Operators Manual/Parts List
