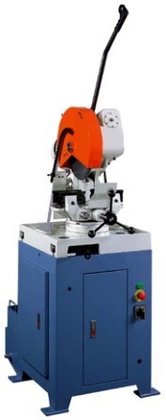

BAILEIGH CS-350M 14", MANUAL COLD
Location:
McClellan Park, CA
Manufacturer:
Baileigh saws
Model:
CS-350M
Motor:
4.0 / 3.0 hp
Weight:
820 lbs

Specifications

Condition:
new
Stock number:
4965
Motor:
4.0 / 3.0 hp
Power:
220V / 3-phase
Operation:
Manual
Arbor size:
1.26"
Head miter:
90 Slotting, 45 Left / 45 Right
Head style:
Pivot
Vice style:
Dual Action, Self Centering
Blade speed:
Two Speeds, 26 / 52 (rpm)
Coolant system:
Yes
Shipping weight:
820 lbs
Round tube at 45:
2.953"
Round tube at 90:
4.331"
Slotting capable:
Yes, Left and Right
Max. vice opening:
6.5"
Round solid at 45:
1.575"
Round solid at 90:
2.362"
Square tube at 45:
2.953" x 2.953"
Square tube at 90:
4.25" x 4.25"
Shipping dimensions:
60" x 44" x 48"
Rectangle tube at 45:
2.953" x 2.362"
Rectangle tube at 90:
4.25" x 3.5"
Subcategory:
Coldsaws

Description

Model: CS-350M
Operation: Manual
Head Miter: 90 Slotting, 45 Left / 45 Right
Round Solid at 45: 1.575"
Square Tube at 45: 2.953" x 2.953"
Round Tube at 45: 2.953"
Rectangle Tube at 45: 2.953" x 2.362"
Round Solid at 90: 2.362"
Rectangle Tube at 90: 4.25" x 3.5"
Square Tube at 90: 4.25" x 4.25"
Round Tube at 90: 4.331"
Coolant System: Yes
Slotting Capable: Yes, Left and Right
Vice Style: Dual Action, Self Centering
Max. Vice Opening: 6.5"
Head Style: Pivot
Arbor Size: 1.26"
Motor: 4.0 / 3.0 hp
Blade Speed: Two Speeds, 26 / 52 (rpm)
Power: 220V / 3-phase
Shipping Weight: 820 lbs.
Shipping Dimensions: 60" x 44" x 48"
DESCRIPTION:
If you are looking for a circular cold saw that can handle
anything that you can throw at it and have it last for years
in any environment, then look at the CS-350M from Baileigh
Industrial. Simply put the CS-350M is the best cold saw on
the market for the price. The CS-350M has a maximum
capacity of 4-1/4" round at 90 degrees, and is the perfect
choice for all fabrication cutting jobs like marine rails,
playground equipment, hand railing, and various chassis
Applications. The CS-350M has the ability to miter from 45
degrees to the right to 90 degrees on the left, perfect for
slotting applications.
The CS-350M is built to exacting specifications; and
includes many features that are not available on other saws
in its price range, such as a unique self centering vise
that keeps the material perfectly centered with the blade
for absolutely perfect cuts. The CS-350M also has a direct
drive head that has all metal gears that are ground and
hardened for long life, and to ensure tight tolerances are
kept throughout the life of the saw, the CS-350M has a
backlash adjustment. And to ensure long blade life this
circular cold saw has an industrial grade flood coolant
system as well.
The CS-350M has two speeds at which the blade can turn, 26
and 52 rpm because of its robust 4 hp 220 volt three phase
motor. The two speeds are important when cutting multiple
types of materials.
