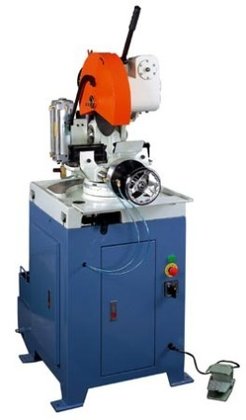

BAILEIGH CS-350SA 14", SEMI-AUTOMATIC COLD
Location:
McClellan Park, CA
Manufacturer:
Baileigh saws
Model:
CS-350SA
Motor:
4.0 / 3.0 hp
Weight:
900 lbs

Specifications

Condition:
new
Stock number:
5036
Motor:
4.0 / 3.0 hp
Power:
220V / 3-phase
Operation:
Semi-Automatic
Arbor size:
1.26"
Blade size:
14"
Head miter:
90 Slotting, 45 Left / 45 Right
Head style:
Pivot
Vice style:
Dual Action, Self Centering
Blade motor:
5 hp
Blade speed:
Two Speeds, 26 / 52 (rpm)
Coolant system:
Yes
Shipping weight:
900 lbs
Round tube at 45:
2.953"
Round tube at 90:
4.331"
Slotting capable:
Yes, Left and Right
Max. vice opening:
6"
Round solid at 90:
2.362"
Square tube at 45:
2.953" x 2.953"
Square tube at 90:
4.25" x 4.25"
Max. blade diameter:
14"
Shipping dimensions:
60" x 44" x 48"
Rectangle tube at 45:
2.953" x 2.362"
Rectangle tube at 90:
4.25" x 3.5"
Shear capacity plate:
393 "
Subcategory:
Coldsaws

Description

Model: CS-350SA
Max. Blade Diameter: 14"
Operation: Semi-Automatic
Head Miter: 90 Slotting, 45 Left / 45 Right
Square Tube at 45: 2.953" x 2.953"
Round Tube at 45: 2.953"
Rectangle Tube at 45: 2.953" x 2.362"
Round Solid at 90: 2.362"
Rectangle Tube at 90: 4.25" x 3.5"
Square Tube at 90: 4.25" x 4.25"
Round Tube at 90: 4.331"
Coolant System: Yes
Slotting Capable: Yes, Left and Right
Vice Style: Dual Action, Self Centering
Max. Vice Opening: 6"
Head Style: Pivot
Arbor Size: 1.26"
Shear Capacity Plate: .393 "
Motor: 4.0 / 3.0 hp
Blade Motor: 5 hp
Blade Size: 14"
Blade Speed: Two Speeds, 26 / 52 (rpm)
Power: 220V / 3-phase
Shipping Weight: 900 lbs.
Shipping Dimensions: 60" x 44" x 48"
DESCRIPTION:
Do you have the need for more production from your current
cut off saw? The CS-350SA from Baileigh industrial might
just be the right choice. It is a great production saw for
any shop that is cutting thin, medium, or thick walled pipe,
tubing, extrusions, or solid bar stock. Designed from the
CS-350M, this design has proven itself to be one of the best
production saws available. The head of the CS-350SA is made
from heavy duty cast iron and has a self centering vise that
is unique because it keeps the material perfectly centered
with the blade for absolutely perfect cuts. The blade of the
CS-350SA is direct drive and run by a 4 hp motor that
requires 220 volt three phase power. The head features all
metal gears that are ground and hardened for long life, and
to ensure tight tolerances are kept throughout the life of
the saw, the CS-350SA has a backlash adjustment. The CS-
350SA has two operating speeds, 26 and 52 rpm.
Capacity on the CS-350SA cut off saw is also impressive
because of its massive 14" blade. It features a 4.25" round
capacity at 90 degrees and has the ability to cut 45 degrees
to the right and 90 degrees to the left. The 90 degree cut
is important if you have any applications that call for
slotting.
Operation of the CS-350SA semi-automatic cold saw is easy as
well, place the material in the vise and push the foot
pedal. The vise will clamp the material; the blade will
start up and lower itself cutting the material. Once the
cut is complete the blade will shut off and the head will
raise back up. This process save time and effort of the
operator and will also make the shop more efficient.
