Top Seller

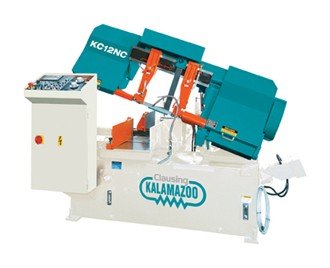

CLAUSING KC12NC 12", KALAMAZOO AUTOMATIC
Location:
McClellan Park, CA
Manufacturer:
Clausing saws
Model:
KC12NC
Motor:
5 Hp (3.75 kw), 230/460v 3ph*
Weight:
3,528 lbs (1600 kg)

Specifications

Condition:
new
Stock number:
8178
Motor:
5 Hp (3.75 kw), 230/460v 3ph*
Round:
11.81" (300mm)
Width:
75" (1905mm)
Height:
76.7" (1950mm)
Length:
74.4" (1890mm)
Square:
11.81" (300mm)
Coolant:
Recirculating
Max. feed:
255.9" (6500mm)
Bed height:
26" (660mm)
Net weight:
3,528 lbs (1600 kg)
Rectangular:
13.4" x 11.81" (340 x 300mm)
Blade tension:
Hydraulic
Shipping weight:
3,970 lbs (1800 kg)
Coolant capacity:
11.9 gallons (45 liters)
Feed length/index:
15.86" (403mm)
Bundle cutting width:
7.48" to 11.81" (190 to 300mm)
Hydraulic pump motor:
1 Hp (.75 kw)
Bundle cutting height:
2.75" to 5.51" (70 to 140mm)
Blade size (w x t x l):
1.3"x.042"x150.4" (34 x 1.1 x
Hydraulic oil capacity:
6.6 gallons (25 liters)
Blade speeds (variable speed):
66-330 fpm (20-100m/min)

Description

Model: KC12NC
Motor: 5 Hp (3.75 kw), 230/460v 3ph*
Hydraulic Pump Motor: 1 Hp (.75 kw)
Hydraulic Oil Capacity: 6.6 gallons (25 liters)
Blade Speeds (Variable speed): 66-330 fpm (20-100m/min)
Blade Size (W x T x L): 1.3"x.042"x150.4" (34 x 1.1 x
3820mm)
Blade Tension: Hydraulic
Coolant: Recirculating
Coolant Capacity: 11.9 gallons (45 liters)
CUTTING CAPACITY:
@ 90 Degrees:
Round: 11.81" (300mm)
Square: 11.81" (300mm)
Rectangular: 13.4" x 11.81" (340 x 300mm)
**Bundle Cutting Width: 7.48" to 11.81" (190 to 300mm)
**Bundle Cutting Height: 2.75" to 5.51" (70 to 140mm)
Feed Length/Index: 15.86" (403mm)
Max. Feed: 255.9" (6500mm)
Length: 74.4" (1890mm)
Width: 75" (1905mm)
Height: 76.7" (1950mm)
Bed Height: 26" (660mm)
Net Weight: 3,528 lbs (1600 kg)
Shipping Weight: 3,970 lbs (1800 kg)
FEATURES:
* Oversized hydraulic cylinder
* Hydraulic shuttle vice assembly
* Inverter controlled infinitely variable speed
* Carbide blade guides with roller bearings
* Two additional guides to support the blade from the top
* Automatic hydraulic blade tensioning
* Power driven blade brushes
* Integral coolant system
* Smart NC-100 technology programmable up to 100 different
jobs
* Easy recal and execution of stored parts
* Automatic shutoff after preset number of cuts or when
out of stock
* 5.7" HMI touch screen incorporating readout on blade
speed, blade life, feed vise position and error code display
for self-diagnostics
* Automatic kerf loss compensation & computer controlled
multiple indexing
* Precision feed pressure & feed rate
* Bundle/single cutting mode switch
* Automatic height setting feature
* Hydraulic front and rear vises
* Cast iron vises with replaceable hardened wear plates
* Discharge table with built-in coolant return
* Blade slippage or breakage detection
* Adjustable cut-off stock fence
* Additional flushing hose
* Bi-metal saw blade
* Built in work light
* Tool box, leveling pads, and an additional wire brush
* Operation & parts manual
TWO (2)-YEAR LIMITED WARRANTY!!
