ELITE EHB-1018VMH (HY) 10" x
Location:
McClellan Park, CA
Manufacturer:
ELITE
Model:
EHB-1018VMH (HY)
Motor:
2 HP, 230/460V, CSA/UL Certified
Weight:
1,034

Specifications

Condition:
new
Stock number:
8155
Motor (hp):
2 HP, 230/460V, CSA/UL Certified
Stock number:
891080
Bed height (in.):
32
Blade size (in.):
1 x .035 x 144
Net weight (lbs.):
1,034
Blade speeds (sfpm):
Variable 50-275
Gross weight (lbs.):
1,144
Vise swivels (deg.):
0
Head movement (deg.):
60 Degrees R, 45 Degrees L
Round at 45 degrees (in.):
10
Round at 60 degrees (in.):
6
Round at 90 degrees (in.):
10
Blade wheel diameter (in.):
14
Square at 45 degrees (in.):
10 x 10
Square at 60 degrees (in.):
5-1/2 x 5-1/2
Square at 90 degrees (in.):
10 x 10
Rectangle at 45 degrees (in.):
10 x 12
Rectangle at 60 degrees (in.):
6 x 5
Rectangle at 90 degrees (in.):
10 x 17

Description

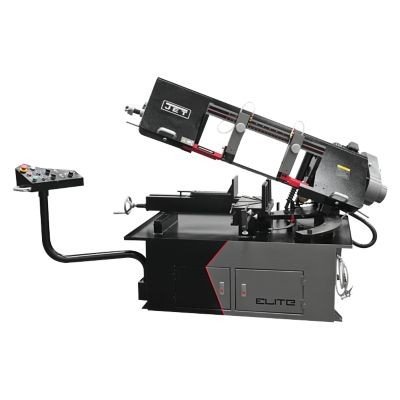

Model: EHB-1018VMH (SEMI AUTO DUAL MITER WITH HYDR VISE)
Stock Number: 891080
CUTTING CAPACITIES
Round at 90 Degrees (In.): 10
Round at 60 Degrees (In.): 6
Round at 45 Degrees (In.): 10
Rectangle at 90 Degrees (In.): 10 x 17
Rectangle at 60 Degrees (In.): 6 x 5
Rectangle at 45 Degrees (In.): 10 x 12
Square at 90 Degrees (In.): 10 x 10
Square at 60 Degrees (In.): 5-1/2 x 5-1/2
Square at 45 Degrees (In.): 10 x 10
Vise Swivels (Deg.): 0
Head Movement (Deg.): 60 Degrees R, 45 Degrees L
Blade Size (In.): 1 x .035 x 144
Blade Wheel Diameter (In.): 14
Blade Speeds (SFPM): Variable 50-275
Bed Height (In.): 32
Motor (HP): 2 HP, 230/460V, CSA/UL Certified
Overall Dimensions (L x W x H) (In.): 85 x 40 x 44
Net Weight (lbs.): 1,034
Gross Weight (lbs.): 1,144
FEATURES:
* ELITE swing away panel relocates saw controls to a single
location, offering finger-tip operation of most major saw
functions
* Semi-Automatic bow raises after cut to predetermined
height
* Automatic blade breakage sensor detects accidental
breakage and interrupts the power
* Heavy-duty construction reduces vibration and deflection
* Blade is fully guarded for operator safety
* Built-in, self propelled blade brush prevents chip build
up in blade guides
* Automatic blade shut off switch stops the sawing process
* Hydraulic downfeed control is easily adjusted enabling
feed rates to evolve with the various types of materials
* Variable speed drivetrain allows operator to fine tune the
blade speed fast and easily
* To reduce user fatigue and increase safety of the worker
we increased the saw bed height to 32"
* Integrated pressurized wash hose for easy machine cleaning
STANDARD EQUIPMENT:
* Coolant System
* Hydraulic vise for rapid clamping of materials
* Adjustable material stop
* 1" 4/6VT Bi-Metal blade
3-YEAR FACTORY WARRANTY INCLUDED!!
