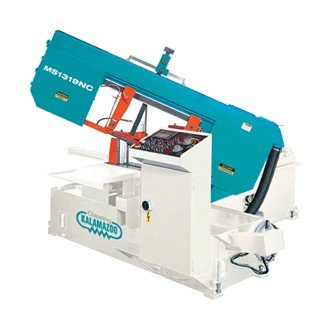

CLAUSING MS1319NC 13", KALAMAZOO AUTOMATIC
Location:
McClellan Park, CA
Manufacturer:
Clausing saws
Model:
MS1319NC
Motor:
5 Hp (3.75 kw), 230/460v 3ph*
Weight:
3,300 lbs (1500 kg)

Specifications

Condition:
new
Stock number:
8184
Motor:
5 Hp (3.75 kw), 230/460v 3ph*
Round:
13" (330mm)
Width:
102" (2600mm)
Height:
86.6" (2200mm)
Length:
114" (2900mm)
Coolant:
Recirculating
Round 2:
11.5" (290mm)
Max. feed:
255.9" (6500mm)
Bed height:
28.3" (720mm)
Net weight:
3,300 lbs (1500 kg)
Rectangular:
11" x 19.68" (280 x 500mm)
Blade tension:
Hydraulic
Rectangular 2:
10.43" x 10.43" (265 x 265mm)
Shipping weight:
3,745 lbs (1700 kg)
Coolant capacity:
14.3 gallons (55 liters)
Feed length/index:
23.9" (607mm)
Hydraulic pump motor:
1 Hp (.75 kw)
Blade size (w x t x l):
1.3" x .042" x 184" (34 x 1.1 x
Hydraulic oil capacity:
10.4 gallons (40 liters)
Blade speeds (variable speed):
66-330 fpm (20-100 m/min)

Description

Model: MS1319NC
Motor: 5 Hp (3.75 kw), 230/460v 3ph*
Hydraulic Pump Motor: 1 Hp (.75 kw)
Hydraulic Oil Capacity: 10.4 gallons (40 liters)
Blade Speeds (Variable speed): 66-330 fpm (20-100 m/min)
Blade Size (W x T x L): 1.3" x .042" x 184" (34 x 1.1 x
4670mm)
Blade Tension: Hydraulic
Coolant: Recirculating
Coolant Capacity: 14.3 gallons (55 liters)
CUTTING CAPACITY:
@ 90 Degrees:
Round: 13" (330mm)
Rectangular: 11" x 19.68" (280 x 500mm)
@ 43 Degrees:
Round: 11.5" (290mm)
Rectangular: 10.43" x 10.43" (265 x 265mm)
Feed Length/Index: 23.9" (607mm)
Max. Feed: 255.9" (6500mm)
Length: 114" (2900mm)
Width: 102" (2600mm)
Height: 86.6" (2200mm)
Bed Height: 28.3" (720mm)
Net Weight: 3,300 lbs (1500 kg)
Shipping Weight: 3,745 lbs (1700 kg)
FEATURES:
* The swivel sawhead allows cutting at any angle between
90 degrees (straight cut) and 45 degrees (miter cut)
* Precision pivot system facilitates easy and accurate
adjustment for angle cuts
* Inverter controlled infinitely variable speed
* Carbide blade guides with roller bearings
* Two additional guides to support the blade from the top
* Automatic hydraulic blade tensioning
* Power driven blade brushes
* Integral coolant system
* Smart NC-100 technology programmable up to 100 different
jobs
* Easy recal and execution of stored parts
* Automatic shutoff after preset number of cuts or when
out of stock
* 5.7" HMI touch screen incorporating readout on blade
speed, blade life, feed vise position and error code display
for self-diagnostics
* Automatic kerf loss compensation & computer controlled
multiple indexing
* Precision feed pressure & feed rate
* Automatic height setting feature
* Hydraulic front and rear vises
* Cast iron vises with replaceable hardened wear plates
* Computer controlled multiple indexing
* Discharge table with built-in coolant return
* Blade slippage or breakage detection
* Additional flushing hose
* Bi-metal saw blade
* Built in work light
* Tool box, leveling pads, and an additional wire brush
* Operation & parts manual
TWO (2)-YEAR LIMITED WARRANTY!!
