Top Seller

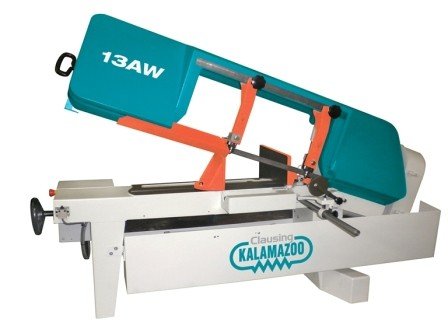

CLAUSING 13AW 13" x 18",
Location:
McClellan Park, CA
Manufacturer:
Clausing saws
Model:
13AW

Specifications

Condition:
new
Stock number:
8518
Band wheel diameter:
18"

Description

MODEL: 13AW
Motor 2 Hp, 208/230/460V, 3 Phase
Band Wheel Diameter: 18"
Blade 1" x .035" x 13'-11"
Bed Height 25-1/2"
Vise Opening 23"
Blade Speeds (Variable speed) 65-345 fpm
90-DEGREE CUTTING CAPACITY:
Round 13"
Rectangular 10" X 20"
45-DEGREE CUTTING CAPACITY:
Round 12"
Rectangular 9" x 13"
Width 86"
Depth (with stock stop) 46" (51-1/2")
Height (head-up) 70"
Height (head-down) 38-1/2"
Shipping Weight 1,200 lbs.
FEATURES
-Variable speed drive
-Quick and easy blade installation
-Rotary wire brush for chip removal to help improve blade
life
-Enclosed gear box with gears in an oil bath
-Recirculating coolant system
-Gravity feed head controlled by counterbalance springs
working with a hydraulic cylinder to insure constant feed
pressure on the blade
-Swivel vise enables quick set-up for angle cuts up to 45-
Degrees
-Electric Bandwheel door interlock
OPTIONAL EQUIPMENT AVAILABLE:
ACC03 Worklight Mounted
ACC03ANFPA79 Mounted Worklight
BT01Band Saw Blade Tension Gauge
9A1900CSet of Carbide Blade Guides - installed
9A1900ACCSet of Carbide Blade Guides - not installed
ACC053 Steel Faced Casters
ACC05DSteel Caster Set, 5 pcs.
ACC063 Steel Rubber Casters
ACC06DRubber Caster Set, 5 pcs.
P10Stock Stand Assembly 21"-30"
SA12Roller Table 18" x 10' (22"-29") 4.5" CTR (4.4K Cap)
SA13Roller Table 18" x 5' (22"-29") 4.5" CTR (4.4K Cap)
CSR1SAWZIT 1 Gallon
CSR5SAWZIT 5 Gallon
DT20ADischarge Tray Assembly
