Top Seller

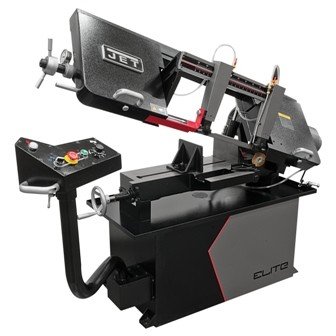

ELITE EHB-916V 9" x 16",
Location:
McClellan Park, CA
Manufacturer:
ELITE
Model:
EHB-916V
Motor:
2 HP, 230/460V CSA/UL Certified
Weight:
616

Specifications

Condition:
new
Stock number:
8325
Motor (hp):
2 HP, 230/460V CSA/UL Certified
Stock number:
891050
Blade size (in.):
1 x .035 x 128-1/2
Net weight (lbs.):
616
Overall dimensions:
65"L x 28"W x 42"H
Blade speeds (sfpm):
Variable 50 - 275
Gross weight (lbs.):
726
Vise swivels (deg.):
45
Head movement (deg.):
0
Round at 45 degrees (in.):
7
Round at 90 degrees (in.):
9
Blade wheel diameter (in.):
14
Square at 45 degrees (in.):
7 x 7
Square at 90 degrees (in.):
9 x 9
Rectangle at 45 degrees (in.):
7 x 8-1/2
Rectangle at 90 degrees (in.):
6 x 16

Description

Model: EHB-916V
Stock Number: 891050
Cutting Capacities:
Round at 90 Degrees (In.): 9
Round at 45 Degrees (In.): 7
Rectangle at 90 Degrees (In.): 6 x 16
Rectangle at 45 Degrees (In.): 7 x 8-1/2
Square at 90 Degrees (In.): 9 x 9
Square at 45 Degrees (In.): 7 x 7
Vise Swivels (Deg.): 45
Head Movement (Deg.): 0
Blade Size (In.): 1 x .035 x 128-1/2
Blade Wheel Diameter (In.): 14
Blade Speeds (SFPM): Variable 50 - 275
Bed Height (In.) 32
Motor (HP): 2 HP, 230/460V CSA/UL Certified
Overall Dimensions: 65"L x 28"W x 42"H
Net Weight (lbs.): 616
Gross Weight (lbs.): 726
FEATURES:
* ELITE swing away panel relocates saw controls to a single
location, offering finger-tip operation of most major saw
functions
* Automatic blade breakage sensor detects accidental
breakage and interrupts the power
* Heavy-duty construction reduces vibration and deflection
* Blade is fully guarded for operator safety
* Built-in, self propelled blade brush prevents chip build
up in blade guides
* Automatic blade shut off switch stops the sawing process
* Hydraulic downfeed control is easily adjusted enabling
feed rates to evolve with the various types of materials
* Variable speed drivetrain allows operator to fine tune the
blade speed fast and easily
* To reduce user fatigue and increase safety of the American
worker we increased the saw bed height to 32".
* Following strict guidelines, CSA/UL electrics have been
added for increased safety
STANDARD EQUIPMENT:
* Coolant System
* Quick positioning vise
* Adjustable material stop
* 1" 4/6VT Bi-Metal blade
3-YEAR FACTORY WARRANTY INCLUDED!!
