Top Seller

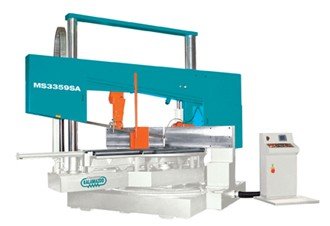

CLAUSING MS3359SA 33.5", KALAMAZOO SEMI-AUTO
Location:
McClellan Park, CA
Manufacturer:
Clausing saws
Model:
MS3359SA
Motor:
15 Hp (11.25 kw), 230/460v 3ph*
Weight:
39,600 lbs (18000 kg)

Specifications

Condition:
new
Stock number:
8188
Motor:
15 Hp (11.25 kw), 230/460v 3ph*
Round:
33.5" (850mm)
Width:
219" (5550mm)
Height:
165" (4200mm)
Length:
203" (5160mm)
Coolant:
Recirculating
Round 2:
31.5" (800mm)
Round 3:
22.8" (580mm)
Bed height:
51" (1295mm)
Net weight:
39,600 lbs (18000 kg)
Rectangular:
29.5" x 59" (750 x 1500mm)
Blade tension:
Hydraulic
Rectangular 2:
29.5" x 35.4" (750 x 900mm)
Rectangular 3:
29.5" x 22.8" (750 x 580mm)
Shipping weight:
46,200 lbs (21000 kg)
Coolant capacity:
39 gallons (150 liters)
Hydraulic pump motor:
3 Hp (2.25 kw)
Blade size (w x t x l):
2.6" x .063" x 468" (67 x 1.6 x
Hydraulic oil capacity:
20.8 gallons (80 liters)
Blade speeds (variable speed):
66-330 fpm (20-100 m/min)

Description

Model: MS3359SA
Motor: 15 Hp (11.25 kw), 230/460v 3ph*
Hydraulic Pump Motor: 3 Hp (2.25 kw)
Hydraulic Oil Capacity: 20.8 gallons (80 liters)
Blade Speeds (Variable speed): 66-330 fpm (20-100 m/min)
Blade Size (W x T x L): 2.6" x .063" x 468" (67 x 1.6 x
11880mm)
Blade Tension: Hydraulic
Coolant: Recirculating
Coolant Capacity: 39 gallons (150 liters)
CUTTING CAPACITY:
@ 90 Degrees:
Round: 33.5" (850mm)
Rectangular: 29.5" x 59" (750 x 1500mm)
@ 45 Degrees:
Round: 31.5" (800mm)
Rectangular: 29.5" x 35.4" (750 x 900mm)
@ 60 Degrees:
Round: 22.8" (580mm)
Rectangular: 29.5" x 22.8" (750 x 580mm)
Length: 203" (5160mm)
Width: 219" (5550mm)
Height: 165" (4200mm)
Bed Height: 51" (1295mm)
Net Weight: 39,600 lbs (18000 kg)
Shipping Weight: 46,200 lbs (21000 kg)
FEATURES:
* Swivel sawhead mitering from 90 degrees to 60 degrees
* Precision ground, oversized round column design
* 10 degree blade cant for longer blade life
* Heavy duty, rigid saw frame supported by two large bore
hydraulic cylinders
* Cross link connecting the two columns for enhanced
structural strength
* 45 degree forward & backward swivel with automatic angle
lock-in smooth and powerful cutting
* Heavy duty inverter blade drive system
* Easy-to-read LED speed indicator
* Hydraulically operated carbide blade guides
* Two additional guide bearings for extra support of the
blade
* Automatic hydraulic blade tensioning device
* Hydraulically actuated guide arm
* Integral coolant system
* Synchronized power driven blade brush
* Independent control station
* Precision feed pressure & feed rate dual valve system
* "Last cut" or "keep on" selector switch
* Vise pressure detector
* Hydraulically powered material infeed lift roller
* Idle roller work table for material feeding
* Light projection for precise length measurement
* Two full stroke cylinder vises
* Proximity switch for sensing blade slippage or breakage
* Electrical and hydraulic safety interlock
* Conduits protection
* Bi-metal saw blade
* Tool box, leveling pads, and an additional wire brush
* Operation & parts manual
TWO (2)-YEAR LIMITED WARRANTY!!
