Top Seller

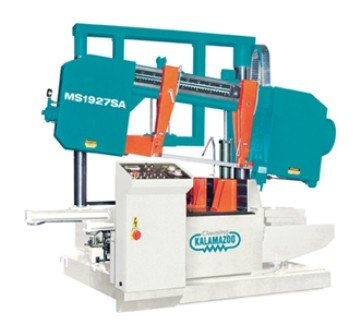

CLAUSING MS1927SA 19", KALAMAZOO SEMI-AUTO
Location:
McClellan Park, CA
Manufacturer:
Clausing saws
Model:
MS1927SA
Motor:
7.5 Hp (5.6 kw), 230/460v 3ph*
Weight:
6,600 lbs (3000 kg)

Specifications

Condition:
new
Stock number:
8186
Motor:
7.5 Hp (5.6 kw), 230/460v 3ph*
Round:
19.7" (500mm)
Width:
113.5" (2880mm)
Height:
89" (2260mm)
Length:
69" (1750mm)
Coolant:
Recirculating
Round 2:
13.8" (350mm)
Round 3:
7.9" (200mm)
Bed height:
27.5" (700mm)
Net weight:
6,600 lbs (3000 kg)
Rectangular:
15.7" x 27.6" (400 x 700mm)
Blade tension:
Hydraulic
Rectangular 2:
18.5" x 13.8" (470 x 350mm)
Rectangular 3:
19.7" x 7.9" (500 x 200mm)
Shipping weight:
7,480 lbs (3400 kg)
Coolant capacity:
13 gallons (50 liters)
Hydraulic pump motor:
1 Hp (.75 kw)
Blade size (w x t x l):
1.6" x .050" x 283" (41 x 1.3 x
Hydraulic oil capacity:
9.1 gallons (35 liters)
Blade speeds (variable speed):
82-312 fpm (25-95 m/min)

Description

Model: MS1927SA
Motor: 7.5 Hp (5.6 kw), 230/460v 3ph*
Hydraulic Pump Motor: 1 Hp (.75 kw)
Hydraulic Oil Capacity: 9.1 gallons (35 liters)
Blade Speeds (Variable speed): 82-312 fpm (25-95 m/min)
Blade Size (W x T x L): 1.6" x .050" x 283" (41 x 1.3 x
5450mm)
Blade Tension: Hydraulic
Coolant: Recirculating
Coolant Capacity: 13 gallons (50 liters)
CUTTING CAPACITY:
@ 90 Degrees:
Round: 19.7" (500mm)
Rectangular: 15.7" x 27.6" (400 x 700mm)
@ 45 Degrees:
Round: 13.8" (350mm)
Rectangular: 18.5" x 13.8" (470 x 350mm)
@ 60 Degrees:
Round: 7.9" (200mm)
Rectangular: 19.7" x 7.9" (500 x 200mm)
Length: 69" (1750mm)
Width: 113.5" (2880mm)
Height: 89" (2260mm)
Bed Height: 27.5" (700mm)
Net Weight: 6,600 lbs (3000 kg)
Shipping Weight: 7,480 lbs (3400 kg)
FEATURES:
* Swivel sawhead mitering from 90 degrees to 60 degrees
* Rigid, oversized round columns precision ground to
ensure smooth and consistent feed rate
* 7.5 degree blade cant for longer blade life
* 45 degree backward swivel with automatic angle lock-in
* Specially designed gearbox for smooth and powerful
cutting
* Heavy duty inverter blade drive system
* Carbide blade guides
* Two additional guide bearings for extra support of the
blade
* Automatic hydraulic blade tensioning device
* Integral coolant system
* Synchronized power driven blade brush
* Independent control station
* Infinitely variable blade speed control
* Precision feed pressure & feed rate dual valve system
* "Last cut" or "keep on" selector switch
* Work height selector
* Extremely heavy-duty cast iron machines vises ensuring
tight clamping
* 2 sets of full stroke cylinder vises
* Shadow light projection for precise length measurement
* Proximity switch for sensing blade slippage or breakage
* Electrical and hydraulic safety interlock
* Conduits protection measure
* "Alert Orange" safety measure
* Blade "clip" device for easy blade change
* Bi-metal saw blade
* Tool box, leveling pads, and an additional wire brush
* Operation & parts manual
TWO (2)-YEAR LIMITED WARRANTY!!
