Top Seller

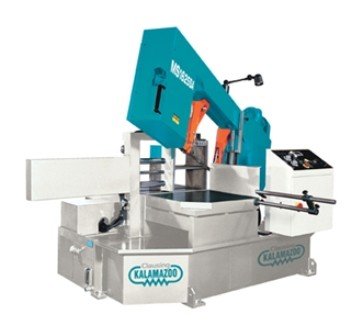

CLAUSING MS1625SA 16", KALAMAZOO SEMI-AUTO
Location:
McClellan Park, CA
Manufacturer:
Clausing saws
Model:
MS1625SA
Motor:
5 Hp (3.75 kw), 230/460v 3ph*
Weight:
2,640 lbs (1200 kg)

Specifications

Condition:
new
Stock number:
8185
Motor:
5 Hp (3.75 kw), 230/460v 3ph*
Round:
16.5" (420mm)
Width:
114" (2900mm)
Height:
98.4" (2500mm)
Length:
90.6" (2300mm)
Coolant:
Recirculating
Round 2:
16" (400mm)
Round 3:
10" (250mm)
Bed height:
29.5" (750mm)
Net weight:
2,640 lbs (1200 kg)
Rectangular:
15" x 26.6" (380 x 650mm)
Blade tension:
Hydraulic
Rectangular 2:
16" x 16" (400 x 400mm)
Rectangular 3:
16" x 10" (400 x 250mm)
Shipping weight:
3,300 lbs (1500 kg)
Coolant capacity:
15.6 gallons (60 liters)
Hydraulic pump motor:
1 Hp (.75 kw)
Blade size (w x t x l):
1.3" x .042" x 209" (34 x 1.1 x
Hydraulic oil capacity:
11.7 gallons (45 liters)
Blade speeds (variable speed):
66-328 fpm (20-100 m/min)

Description

Model: MS1625SA
Motor: 5 Hp (3.75 kw), 230/460v 3ph*
Hydraulic Pump Motor: 1 Hp (.75 kw)
Hydraulic Oil Capacity: 11.7 gallons (45 liters)
Blade Speeds (Variable speed): 66-328 fpm (20-100 m/min)
Blade Size (W x T x L): 1.3" x .042" x 209" (34 x 1.1 x
5300mm)
Blade Tension: Hydraulic
Coolant: Recirculating
Coolant Capacity: 15.6 gallons (60 liters)
CUTTING CAPACITY:
@ 90 Degrees:
Round: 16.5" (420mm)
Rectangular: 15" x 26.6" (380 x 650mm)
@ 45 Degrees:
Round: 16" (400mm)
Rectangular: 16" x 16" (400 x 400mm)
@ 60 Degrees:
Round: 10" (250mm)
Rectangular: 16" x 10" (400 x 250mm)
Length: 90.6" (2300mm)
Width: 114" (2900mm)
Height: 98.4" (2500mm)
Bed Height: 29.5" (750mm)
Net Weight: 2,640 lbs (1200 kg)
Shipping Weight: 3,300 lbs (1500 kg)
FEATURES:
* Swivel sawhead mitering from 90 degrees to 60 degrees
* Rigid and heavy-duty pivot and trunion
* Sturdy cast work table
* 24.5" solid discharge table with coolant return
* Variable speeds from 66 thru 330 fpm
* Carbide blade guides with roller bearings
* Two additional bearings to support blade from the top
* Cast iron guide arm supported by heavy-duty cast iron
dovetail
* Automatic hydraulic blade tensioning
* Integral coolant system
* Synchronized blade brush
* Precision feed pressure & feed rate dual valve system
* Conveniently designed control station
* Electrical components located inside the control box
with main lockout disconnect
* Work height selector
* Industrial rated hydraulic components
* 36" infeed roller table
* Full stroke machine vises
* Breakage detector
* Built-in adjustable material stop
* Adjustable work light
* Additional flushing hose
* Bi-metal saw blade
* Tool box, leveling pads, and an additional wire brush
* Operation & parts manual
TWO (2)-YEAR LIMITED WARRANTY!!
