Top Seller

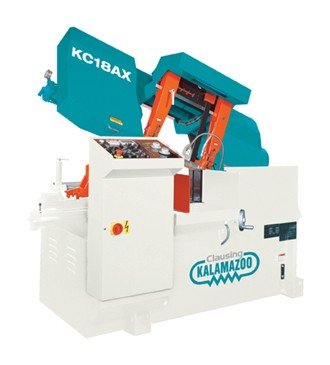

CLAUSING KC18AX 18", KALAMAZOO AUTOMATIC
Location:
McClellan Park, CA
Manufacturer:
Clausing saws
Model:
KC18AX
Motor:
7.5 Hp (5.5 kw), 230/460v 3ph*
Weight:
6,160 lbs (2800 kg)

Specifications

Condition:
new
Stock number:
8182
Motor:
7.5 Hp (5.5 kw), 230/460v 3ph*
Round:
18" (460mm)
Width:
94.5" (2400mm)
Length:
104.4" (2650mm)
Square:
18" (460mm)
Coolant:
Recirculating
Max. feed:
252.6" (5400mm)
Bed height:
29.5" (750vmn)
Net weight:
6,160 lbs (2800 kg)
Rectangular:
18" x 18" (460 x 460mm)
Blade tension:
Hydraulic
Shipping weight:
6,600 lbs (3000 kg)
Coolant capacity:
21 gallons (80 liters)
Height (head-up):
76" (1930mm)
Feed length/index:
23.6" (600mm)
Height (head-down):
92.5" (2350mm)
Hydraulic pump motor:
2 Hp (1.5 kw)
Blade size (w x t x l):
1.6" x .050" x 184" (41 x 1.3 x
Hydraulic oil capacity:
10.6 gallons (40 liters)
Blade speeds (variable speed):
66-330 fpm (20-100 m/min)

Description

Model: KC18AX
Motor: 7.5 Hp (5.5 kw), 230/460v 3ph*
Hydraulic Pump Motor: 2 Hp (1.5 kw)
Hydraulic Oil Capacity: 10.6 gallons (40 liters)
Blade Speeds (Variable speed): 66-330 fpm (20-100 m/min)
Blade Size (W x T x L): 1.6" x .050" x 184" (41 x 1.3 x
4670mm)
Blade Tension: Hydraulic
Coolant: Recirculating
Coolant Capacity: 21 gallons (80 liters)
CUTTING CAPACITY:
@ 90 Degrees:
Round: 18" (460mm)
Square: 18" (460mm)
Rectangular: 18" x 18" (460 x 460mm)
Feed Length/Index: 23.6" (600mm)
Max. Feed: 252.6" (5400mm)
Length: 104.4" (2650mm)
Width: 94.5" (2400mm)
Height (head-down): 92.5" (2350mm)
Height (head-up): 76" (1930mm)
Bed Height: 29.5" (750vmn)
Net Weight: 6,160 lbs (2800 kg)
Shipping Weight: 6,600 lbs (3000 kg)
FEATURES:
* Oversized hydraulic cylinder
* Hydraulic shuttle vice assembly
* Inverter controlled infinitely variable speed
* Carbide blade guides with roller bearings
* Two additional guides to support the blade from the top
* Automatic hydraulic blade tensioning
* Power driven blade brushes
* Integral coolant system
* Automatic shutoff at end of material or after preset
number of cuts
* LCD digital blade speed monitor
* Precision feed pressure & feed rate
* Bundle/single cutting mode switch
* Automatic height setting feature
* Hydraulic front and rear vises
* Cast iron vises with replaceable hardened wear plates
* PLC controlled multiple indexing
* Discharge table with built-in coolant return
* Blade slippage or breakage detection
* Adjustable cut-off stock fence
* Additional flushing hose
* Bi-metal saw blade
* Built in work light
* Tool box, leveling pads, and an additional wire brush
* Operation & parts manual
TWO (2)-YEAR LIMITED WARRANTY!!
