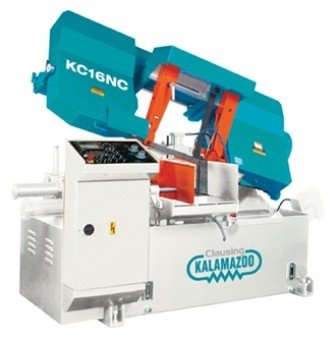

CLAUSING KC16NC 16", KALAMAZOO AUTOMATIC
Location:
McClellan Park, CA
Manufacturer:
Clausing saws
Model:
KC16NC
Motor:
7.5 Hp (5.5 kw), 230/460v 3ph*
Weight:
5,622 lbs (2550 kg)

Specifications

Condition:
new
Stock number:
8180
Motor:
7.5 Hp (5.5 kw), 230/460v 3ph*
Round:
16" (400mm)
Width:
71" (2310mm)
Height:
97.2" (2470mm)
Length:
96" (2450mm)
Square:
15" (400mm)
Coolant:
Recirculating
Max. feed:
255.9" (6500mm)
Bed height:
29.52" (750mm)
Net weight:
5,622 lbs (2550 kg)
Rectangular:
16" x 16" (400 x 400mm)
Blade tension:
Hydraulic
Shipping weight:
6,063 lbs (2750 kg)
Coolant capacity:
21 gallons (80 liters)
Feed length/index:
23.3" (593mm)
Bundle cutting width:
8.46" to 11.61" (215 to 295mm)
Hydraulic pump motor:
2 Hp (1.5 kw)
Bundle cutting height:
3.94" to 7.45" (100 to 190mm)
Blade size (w x t x l):
1/6" x .05" x 180.4" (41 x 1.3 x
Hydraulic oil capacity:
10.6 gallons (40 liters)
Blade speeds (variable speed):
66-330 fpm (20-100 m/min)

Description

Model: KC16NC
Motor: 7.5 Hp (5.5 kw), 230/460v 3ph*
Hydraulic Pump Motor: 2 Hp (1.5 kw)
Hydraulic Oil Capacity: 10.6 gallons (40 liters)
Blade Speeds (Variable speed): 66-330 fpm (20-100 m/min)
Blade Size (W x T x L): 1/6" x .05" x 180.4" (41 x 1.3 x
4570mm)
Blade Tension: Hydraulic
Coolant: Recirculating
Coolant Capacity: 21 gallons (80 liters)
CUTTING CAPACITY:
@ 90 Degrees:
Round: 16" (400mm)
Square: 15" (400mm)
Rectangular: 16" x 16" (400 x 400mm)
**Bundle Cutting Width: 8.46" to 11.61" (215 to 295mm)
**Bundle Cutting Height: 3.94" to 7.45" (100 to 190mm)
Feed Length/Index: 23.3" (593mm)
Max. Feed: 255.9" (6500mm)
Length: 96" (2450mm)
Width: 71" (2310mm)
Height: 97.2" (2470mm)
Bed Height: 29.52" (750mm)
Net Weight: 5,622 lbs (2550 kg)
Shipping Weight: 6,063 lbs (2750 kg)
FEATURES:
* Oversized hydraulic cylinder
* Hydraulic shuttle vice assembly
* Inverter controlled infinitely variable speed
* Carbide blade guides with roller bearings
* Two additional guides to support the blade from the top
* Automatic hydraulic blade tensioning
* Power driven blade brushes
* Integral coolant system
* Smart NC-100 technology programmable up to 100 different
jobs
* Easy recal and execution of stored parts
* Automatic shutoff after preset number of cuts or when
out of stock
* 5.7" HMI touch screen incorporating readout on blade
speed, blade life, feed vise position and error code display
for self-diagnostics
* Automatic kerf loss compensation & computer controlled
multiple indexing
* Precision feed pressure & feed rate
* Bundle/single cutting mode switch
* Automatic height setting feature
* Hydraulic front and rear vises
* Cast iron vises with replaceable hardened wear plates
* Discharge table with built-in coolant return
* Blade slippage or breakage detection
* Adjustable material stop
* Additional flushing hose
* Bi-metal saw blade
* Built in work light
* Tool box, leveling pads, and an additional wire brush
* Operation & parts manual
TWO (2)-YEAR LIMITED WARRANTY!!
