Top Seller

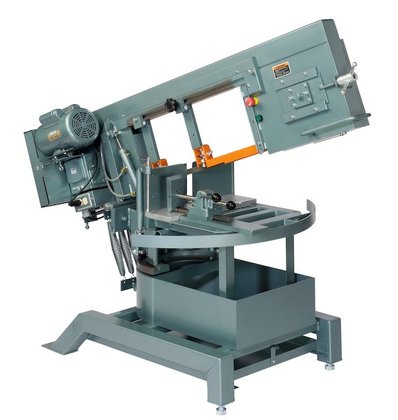

ELLIS 2000 11" x 17",
Location:
McClellan Park, CA
Manufacturer:
ELLIS
Model:
2000
Motor:
1-1/2 HP, 220 Volt, Single Phase standard
Weight:
800 lbs

Specifications

Condition:
new
Stock number:
319
W:
11" H x 13"
W 2:
9" H x 11"
Flat:
17"
Pipe:
10"
Size:
72"L X 34-1/4"W X 47"H
Vise:
Quick Adjusting Cam (Screw vise optional)
Motor:
1-1/2 HP, 220 Volt, Single Phase standard
Round:
11"
Flat 2:
11"
Pipe 2:
6" (6 7/8" O.D.)
Square:
6"W x 6"H
Weight:
800 lbs
Shut off:
Automatic
Rectangle:
6"W x 10"H
Blade size:
12' X 1" X .035
Flat stock:
7"W x 2"Thick
Blade speed:
70-240 FPM
Construction:
Heavy steel, welded and machined for
Table height:
28-1/8"
Head pressure:
Hydraulic Cylinder

Description

Model: 2000
CAPACITY:
@ 90 Degrees:
Round: 11"
Pipe: 10"
Flat: 17"
W: 11" H x 13"
@ 45 Degrees:
Round: 11"
Pipe: 10"
Flat: 11"
W: 9" H x 11"
@ 60 Degrees:
Rectangle: 6"W x 10"H
Square: 6"W x 6"H
Flat Stock: 7"W x 2"Thick
Pipe: 6" (6 7/8" O.D.)
Blade Speed: 70-240 FPM
Blade Size: 12' X 1" X .035
Head Pressure: Hydraulic Cylinder
Vise: Quick Adjusting Cam (Screw vise optional)
Shut Off: Automatic
Motor: 1-1/2 HP, 220 Volt, Single Phase standard
220,440,460,480,575V three phase on request
Weight: 800 lbs.
Size: 72"L X 34-1/4"W X 47"H
Table Height: 28-1/8"
FREE Stock Gauge with MicroAdjuster with machine order!
FEATURES:
* Head moves left or right for angle cutting
* Built in protractor for fast and accurate selection of
angles
* Stock remains in one position for all cuts
* Removable chip tray
* Sealed oil bath worm gear
* Construction: Heavy steel, welded and machined for
accuracy and durability; (14) sealed ball bearings.
OPTIONAL ACCESSORIES:
$100.00 Stock gauge with micro-adjuster
$400.00 5' Stock support stand with 4 rollers (20" wide)
$175.00 Single stock support stand with one roller, movable
$250.00 Air System (cleans and cools blade)
$325.00 Screw Vise
$200.00 Material Support Stand with single roller
