JET HBS-916W 9" x 16",
Location:
McClellan Park, CA
Manufacturer:
JET Tools saws
Model:
HBS-916W
Motor:
1.5 HP, 115/230 Volt, 1 Phase
Weight:
706 lbs

Specifications

Condition:
new
Stock number:
6639
Motor:
1.5 HP, 115/230 Volt, 1 Phase
Prewired:
115
Stock number:
414468
Approx. weight:
706 lbs
Bed height (in.):
25
Blade size (in.):
1 x .035 x 119-1/2
Blade length (in.):
13
Overall dimensions:
65" x 28" x 42"
Blade speeds (sfpm):
82, 132, 170, 235
Vise swivels (deg.):
45-degrees
Rectangle at 45 (in.):
9 x 6-1/2
Round at 45 degrees (in.):
9
Round at 90 degrees (in.):
9
Rectangle at 90 degrees (in.):
14 x 9

Description

Model: HBS-916W
Stock Number: 414468
Motor: 1.5 HP, 115/230 Volt, 1 Phase
Prewired: 115
Round at 90 Degrees (in.): 9
Round at 45 Degrees (in.): 9
Rectangle at 90 Degrees (in.): 14 x 9
Blade Size (in.): 1 x .035 x 119-1/2
Blade Speeds (SFPM): 82, 132, 170, 235
Bed Height (in.): 25
Vise Swivels (deg.): 45-degrees
Blade Length (in.): 13
Rectangle at 45 (in.): 9 x 6-1/2
Overall Dimensions: 65" x 28" x 42"
Approx. Weight: 706 lbs.

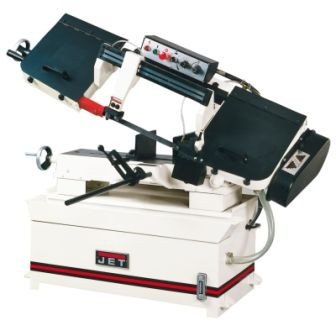

The JET HBS-916W Horizontal Bandsaw is one of the leading
tools of its kind. It comes equipped with tons of features:
a large handwhhel, built-in gauge, blade guides, blade
brush, quick-positioning vise, and removable chip tray just
to name a few. The HBS-916W automatically shuts off after a
cut for safety. Each horizontal bandsaw comes with a 4/6VT
Bi-Metal blade and 2 year warranty.
FEATURES:
* Large handwheel and built-in gauge for easy blade
tensioning
* Coolant is distributed through the blade guides
* Blade guides feature parallel double row ball bearing
support
* Blade brush is built-in and self-propelled
* Quick-positioning vise with fully adjustable jaws swivels
to 45 degrees
* Removable chip tray for quick clean-up
* Blade is fully guarded regardless of blade guide position
* Fully adjustable hydraulic downfeed with separate on/off
valve
STANDARD EQUIPMENT:
* Automatic shut-off after cut
* Carbide blade guides with rollers
* Coolant system
* 4/6VT Bi-metal blade
* Adjustable material stop
2-YEAR FACTORY WARRANTY INCLUDED!!
