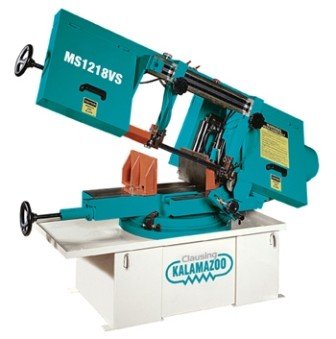

CLAUSING MS1218VS 12", KALAMAZOO SEMI-AUTO
Location:
McClellan Park, CA
Manufacturer:
Clausing saws
Model:
MS1218VS
Motor:
2 HP
Weight:
880 lbs

Specifications

Condition:
new
Stock number:
7430
Round:
12"
Square:
10" x 10" (254 x 254mm)
Round 2:
8" (203mm)
Square 2:
8" x 8" (203 x 203mm)
Rectangle:
10" x 16" (254 x 406mm)
Bed height:
21.75"
Blade size:
1" X .035" X 11'4.5"
Net weight:
880 lbs
Drive motor:
2 HP
Rectangle 2:
8" x 12" (203 x 305mm)
Blade speeds:
80-360 FPM Varispeed
Coolant pump:
125 HP
Vise opening:
18"
Band wheel dia:
15.4"
Hydraulic motor:
25 HP
Shipping weight:
1100 lbs

Description

Model: MS1218VS
Drive Motor: 2 HP
Hydraulic Motor: .25 HP
Coolant Pump: .125 HP
Band Wheel Dia.: 15.4"
Blade Size: 1" X .035" X 11'4.5"
Bed Height: 21.75"
Vise Opening: 18"
Blade Speeds: 80-360 FPM Varispeed
CUTTING CAPACITY:
@ 90 Degrees:
Round: 12"
Square: 10" x 10" (254 x 254mm)
Rectangle: 10" x 16" (254 x 406mm)
@ 45 Degrees:
Round: 8" (203mm)
Square: 8" x 8" (203 x 203mm)
Rectangle: 8" x 12" (203 x 305mm)
DIMENSIONS:
75" Wide x 34"/49.5" Depth/With Stock Stop
x 64"H (head up)
Net Weight: 880 lbs.
Shipping Weight: 1100 lbs.
FEATURES:
* 0 Degrees - 45 Degree Miter cutting, make angle cuts
without swinging material to be cut
* 2 Hp (1.5kw) main drive with magnetic starter and
overload protection
* Variable speed drive
* 230/460v 60 cycle 3 phase electricals
* Recirculating coolant system with application through
both guides
* Solid carbide blade guides with rollers
* Quick position vise
* Automatic shut-off at end of cut
* Totally enclosed transmission
* Blade cleaning brush
* Cast iron bed
* 1" (254mm) wide blade
* Stock stop
* Easily adjusted head feed with power lift
TWO (2)-YEAR LIMITED WARRANTY!!
