Top Seller
JET HVBS-56M 5" x 6",
Location:
McClellan Park, CA
Manufacturer:
JET Tools saws
Model:
HVBS-56M
Motor:
1/2HP, 115/230V, 1Ph, Prewired 115V
Weight:
115 pound

Specifications

Condition:
new
Stock number:
6631
Motor:
1/2HP, 115/230V, 1Ph, Prewired 115V
Width:
14.2 inch
Height:
15.7 inch
Length:
39 inch
Net weight:
115 pound
Stock number:
414458
Bed height (in.):
26
Blade size (in.):
1/2 x .025 x 64-1/2
Blade length (in.):
64-1/2
Overall dimensions:
19 x 44 x 57 (Vertical)
Throat depth (in.):
5
Blade speeds (sfpm):
80, 120, 200
Vise swivels (deg.):
45
Round at 45 degrees (in.):
3
Round at 90 degrees (in.):
5
Rectangle at 45 degrees (in.):
4-1/2(H) x 3(W)
Rectangle at 90 degrees (in.):
5(H) x 5-3/4(W) and 2(H) x
Vertical work table size (in.):
9-5/8 x 9-1/2

Description

Model: HVBS-56M
Stock Number: 414458
Motor: 1/2HP, 115/230V, 1Ph, Prewired 115V
Round at 90 Degrees (in.): 5
Round at 45 Degrees (in.): 3
Rectangle at 90 Degrees (in.): 5(H) x 5-3/4(W) and 2(H) x
6(W)
Blade Size (in.): 1/2 x .025 x 64-1/2
Blade Speeds (SFPM): 80, 120, 200
Bed Height (in.): 26
Vertical Work Table Size (in.): 9-5/8 x 9-1/2
Vise Swivels (deg.): 45
Blade Length (in.): 64-1/2
Rectangle at 45 Degrees (in.): 4-1/2(H) x 3(W)
Throat Depth (in.): 5
Overall Dimensions: 19 x 44 x 57 (Vertical)
Height: 15.7 inch
Width: 14.2 inch
Length: 39 inch
Net Weight: 115 pound

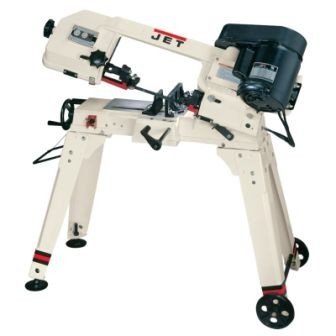

The JET HVBS-56M Metalworking Bandsaw is UL listed and
powered by a 1/2 HP motor. 2 large diameter wheels and built
in handle allow easy movement. Front legs ensure level and
accurate cuts by featuring adjustable leveling pads. Each
HVBS-56M comes equipped with a 1/2" carbon steel blade,
adjustable material stop and vertical worktable. Worried
about safety? Don't - the HVBS-56M shuts off automatically
after each cut.
FEATURES:
* UL Listed single phase motor
* Exclusive design heavy-duty 14-gauge stand
* Large diameter wheels and built-in handle allows easy
movement
* Front legs feature adjustable leveling pads
* Ball bearing supported blade wheel
* Fully adjustable ball bearing blade guides
* Heat-treated and ground steel worm gear with bronze
drive gear
* Three blade speeds to choose from
* Automatic shut-off after cut
STANDARD EQUIPMENT:
* Vertical worktable
* 1/2" Carbon steel blade
* Adjustable material stop
2-YEAR FACTORY WARRANTY INCLUDED!!
