Top Seller

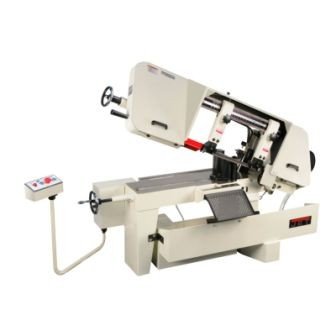

JET J-7040 10" x 16",
Location:
McClellan Park, CA
Manufacturer:
JET Tools saws
Model:
J-7040
Motor:
2 HP, 230/460V, 3 Ph, Prewired 230V
Weight:
973 pound

Specifications

Condition:
new
Stock number:
7850
Motor:
2 HP, 230/460V, 3 Ph, Prewired 230V
Width:
33 inch
Height:
41 inch
Length:
75.5 inch
Net weight:
973 pound
Stock number:
414478
Bed height (in.):
23-1/2
Blade size (in.):
1 X .035 X 135
Blade length (in.):
135
Height range (in.):
41
Blade speeds (sfpm):
100 - 350
Rectangle at 45 (in.):
9 x 8
Cutting capacity (in.):
10 x 16
Round at 45 degrees (in.):
10
Round at 90 degrees (in.):
10
Square at 90 degrees (in.):
10
Rectangle at 90 degrees (in.):
9 x 16
Base/ 3 legs area required (in.):
79 x 31

Description

Model: J-7040
Stock Number: 414478
Motor: 2 HP, 230/460V, 3 Ph, Prewired 230V
Cutting Capacity (in.): 10 x 16
Round at 90 Degrees (in.): 10
Round at 45 Degrees (in.): 10
Rectangle at 90 Degrees (in.): 9 x 16
Square at 90 Degrees (in.): 10
Blade Size (in.): 1 X .035 X 135
Blade Speeds (SFPM): 100 - 350
Bed Height (in.): 23-1/2
Blade Length (in.): 135
Rectangle at 45 (in.): 9 x 8
Base/ 3 Legs Area Required (in.): 79 x 31
Height Range (in.): 41
Height: 41 inch
Width: 33 inch
Length: 75.5 inch
Net Weight: 973 pound
FEATURES:
* Variable speed drive systems allows the operator to fine
tune the blade speed fast and easily
* Exclusive 6 contact point blade adjustable
* Exclusive swivel control panel
* 10" x 16" Horizontal Bandsaw
* One piece wheel cover
* Heavy-duty rugged transmission utilizes hardened and
ground gears operating in an oil bath
* Combined with the side bearings are carbide pads, the
back of the blade rides on two mounted on a pivot shaft so
bothe bearings share the load equally
* Counterbalanced feed system is controlled by a dual
system of counterbalanced
STANDARD EQUIPMENT:
* Swing away control panel
* Patented 3 jaw rapid action vise
* Cast iron blade wheels
* Coolant system
* 1" Bi-metal blade
* Adjustable material stop
2-YEAR FACTORY WARRANTY INCLUDED!!
