Top Seller

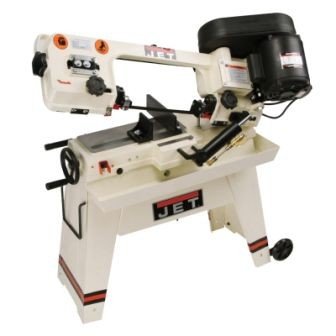

JET J-3230 5" x 8",
Location:
McClellan Park, CA
Manufacturer:
JET
Model:
J-3230
Motor:
1/2 HP, 115V 1 Ph, 1725 RPM
Weight:
160 pound

Specifications

Condition:
new
Stock number:
7861
Motor:
1/2 HP, 115V 1 Ph, 1725 RPM
Width:
0 inch
Height:
0 inch
Length:
0 inch
Net weight:
160 pound
Stock number:
414453
Bed height (in.):
23-1/2
Blade size (in.):
1/2 X .025 X 68-1/2
Blade length (in.):
68-1/2
Overall dimensions:
37 X 16 X 37
Blade speeds (sfpm):
85, 125, 200
Rectangle at 45 (in.):
4-1/2 X 5
Round at 45 degrees (in.):
4-1/2
Round at 90 degrees (in.):
5
Square at 90 degrees (in.):
5
Rectangle at 90 degrees (in.):
7-1/2 X 5
Base/ 3 legs area required (in.):
37 x 16 x 37

Description

Model: J-3230
Stock Number: 414453
Motor: 1/2 HP, 115V 1 Ph, 1725 RPM
Round at 90 Degrees (in.): 5
Round at 45 Degrees (in.): 4-1/2
Rectangle at 90 Degrees (in.): 7-1/2 X 5
Square at 90 Degrees (in.): 5
Blade Size (in.): 1/2 X .025 X 68-1/2
Blade Speeds (SFPM): 85, 125, 200
Bed Height (in.): 23-1/2
Blade Length (in.): 68-1/2
Rectangle at 45 (in.): 4-1/2 X 5
Base/ 3 Legs Area Required (in.): 37 x 16 x 37
Overall Dimensions: 37 X 16 X 37
Height: 0 inch
Width: 0 inch
Length: 0 inch
Net Weight: 160 pound
FEATURES:
* Adjustable hydraulic feed system
* Adjustable ball bearing guides
* Heat treated steel worm gear and bronze driver gear
* Automatic shut off at end of cut
* Handles and wheels for convenient moving to various work
stations
* Eccentric shaft and ball bearing guides
STANDARD EQUIPMENT:
* 1 gallon capacity coolant system with hose, flexible
nozzle, shut off valve, tank and baffle
* 1/2" Carbon steel blade
*Adjustable material stop
2-YEAR FACTORY WARRANTY INCLUDED!!
