Top Seller
JET HBS-1321W 13", SEMI-AUTO HORIZ
Location:
McClellan Park, CA
Manufacturer:
JET Tools saws
Model:
HBS-1321W
Motor:
3HP, 230/460V, 3Ph, Prewired 230V
Weight:
1519 pound

Specifications

Condition:
new
Stock number:
7843
Motor:
3HP, 230/460V, 3Ph, Prewired 230V
Width:
35 inch
Height:
58.5 inch
Length:
89.5 inch
Net weight:
1519 pound
Stock number:
414471
Coolant motor:
1/6 HP
Bed height (in.):
32
Blade size (in.):
1-1/4 x .042 x 161-1/2
Blade length (in.):
161-1/2
Height range (in.):
55
Overall dimensions:
84" x 32-1/2" x 55"
Blade speeds (sfpm):
66 to 264
Rectangle at 45 (in.):
10 x 11-1/2
Round at 45 degrees (in.):
10
Round at 90 degrees (in.):
13
Rectangle at 90 degrees (in.):
13 x 18
Base/ 3 legs area required (in.):
84 x 32-1/2

Description

Model: HBS-1321W
Stock Number: 414471
Motor: 3HP, 230/460V, 3Ph, Prewired 230V
Round at 90 Degrees (in.): 13
Round at 45 Degrees (in.): 10
Rectangle at 90 Degrees (in.): 13 x 18
Blade Size (in.): 1-1/4 x .042 x 161-1/2
Blade Speeds (SFPM): 66 to 264
Bed Height (in.): 32
Blade Length (in.): 161-1/2
Rectangle at 45 (in.): 10 x 11-1/2
Coolant Motor: 1/6 HP
Base/ 3 Legs Area Required (in.): 84 x 32-1/2
Height Range (in.): 55
Overall Dimensions: 84" x 32-1/2" x 55"
Height: 58.5 inch
Width: 35 inch
Length: 89.5 inch
Net Weight: 1519 pound

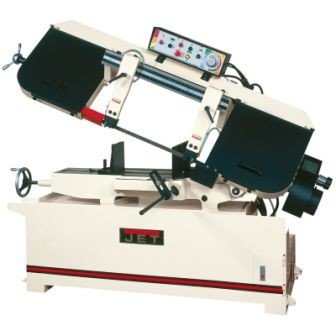

The JET 13" x 21" Semi-Automatic Horizontal Bandsaw boasts a
3HP motor. It raises after each cut automatically to a
predetermined height and will shut off. The variable blade
speed allows optimum cutting performance with the included
3/4VT bi-metal blade.
FEATURES:
* 13" SEMI-AUTO HORIZONTAL BANDSAW
Semi-automatic bow raises after cut is complete to
predetermined height
* Fully adjustable hydraulic downfeed controls the rate of
descent
* Variable blade speed allows optimum cutting performance
* Safety switch shuts off motor if band breaks
* Quick-positioning vise lessens set-up time
* Large handwheel and built-in gauge provides easy blade
tensioning
* Coolant is distributed through the blade guides
* Cleaning hose and nozzle assist in washing chips away
* Easy access chip tray allows quick cleanup
* Self-propelled blade brush extends the blade life
STANDARD EQUIPMENT:
* Automatic shut-off after cut
* Carbide blade guides with rollers
* Coolant system
* 3/4VT Bi-metal blade
* Adjustable material stop
2-YEAR FACTORY WARRANTY INCLUDED!!
