Top Seller
JET J-3410 7" x 12",
Location:
McClellan Park, CA
Manufacturer:
JET Tools saws
Model:
J-3410
Motor:
3/4HP, 115V, 1Ph, 1725RPM
Weight:
360 pound

Specifications

Condition:
new
Stock number:
6505
Motor:
3/4HP, 115V, 1Ph, 1725RPM
Width:
18 inch
Height:
43 inch
Length:
51 inch
Net weight:
360 pound
Stock number:
414454
Bed height (in.):
23-1/2
Blade size (in.):
3/4 x .035 x 93
Blade speeds (sfpm):
80, 130, 180, 265
Rectangle at 45 (in.):
7 x 3-1/2
Round at 45 degrees (in.):
4-1/2
Round at 90 degrees (in.):
7
Square at 90 degrees (in.):
7
Rectangle at 90 degrees (in.):
2 x 12 / 7 x 10-1/2
Base/ 3 legs area required (in.):
50 x 18 x 41

Description

Model: J-3410
Stock Number: 414454
Motor: 3/4HP, 115V, 1Ph, 1725RPM
Round at 90 Degrees (in.): 7
Round at 45 Degrees (in.): 4-1/2
Rectangle at 90 Degrees (in.): 2 x 12 / 7 x 10-1/2
Square at 90 Degrees (in.): 7
Blade Size (in.): 3/4 x .035 x 93
Blade Speeds (SFPM): 80, 130, 180, 265
Bed Height (in.): 23-1/2
Rectangle at 45 (in.): 7 x 3-1/2
Base/ 3 Legs Area Required (in.): 50 x 18 x 41
Height: 43 inch
Width: 18 inch
Length: 51 inch
Net Weight: 360 pound

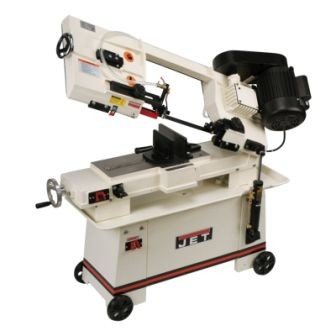

The J-3410 7" x 12" Horizontal Wet Bandsaw is fully equipped
with a 3/4HP motor, side and rear blade guides, heavy duty
cast iron head and table, and rapid acting vise. The
included 3/4" bi-metal blade comes to a stop after each cut
with the automatic shut-off.
FEATURES:
* Side blade guides eccentric shaft, ball bearing
* Rear blade guides ball bearings
* Blade drive is steel, heat treated worm, driving a bronze
worm gear in oil bath
* Heavy-duty cast iron saw head and table
* Oil bath hardened and ground worm gear
* Adjustable ball bearing blade guides
* Blade wheels are made of flanged cast iron
* Adjustable hydraulic feed system
* Automatic shut-off at end of cut
STANDARD EQUIPMENT:
* Rapid acting vise
* Coolant pump 1 gallon, 1Ph motor, complete with hose,
flexible nozzle, shut-off valve, tank and baffle
Wheel kit for convenient moving to various work stations
* 3/4" bi-metal blade
* Adjustable material stop
2-YEAR FACTORY WARRANTY INCLUDED!!
