Top Seller
JET HVBS-7MW 7" x 12",
Location:
McClellan Park, CA
Manufacturer:
JET Tools saws
Model:
HVBS-7MW
Motor:
3/4HP 115/230V 1PH Prewired 115V 12/6A
Weight:
286 pound

Specifications

Condition:
new
Stock number:
7052
Motor:
3/4HP 115/230V 1PH Prewired 115V 12/6A
Width:
17.8 inch
Height:
40.1 inch
Length:
50.5 inch
Net weight:
286 pound
Stock number:
414459
Bed height (in.):
23
Blade size (in.):
3/4 x .035 x 93
Blade length (in.):
93
Overall dimensions:
20-1/2 x 49-1/2" x 38"
Throat depth (in.):
7
Blade speeds (sfpm):
86, 132, 178, 260
Vise swivels (deg.):
45
Round at 45 degrees (in.):
4-1/2
Round at 90 degrees (in.):
7
Rectangle at 45 degrees (in.):
7" (H) x 3-1/2" (W) / 5-1/2"
Rectangle at 90 degrees (in.):
2" (H) x 12" (W) / 7" (H) x
Vertical work table size (in.):
9-3/8 x 10

Description

Model: HVBS-7MW
Stock Number: 414459
Motor: 3/4HP 115/230V 1PH Prewired 115V 12/6A
Round at 90 Degrees (in.): 7
Round at 45 Degrees (in.): 4-1/2
Rectangle at 90 Degrees (in.): 2" (H) x 12" (W) / 7" (H) x
10-7/8" (W)
Blade Size (in.): 3/4 x .035 x 93
Blade Speeds (SFPM): 86, 132, 178, 260
Bed Height (in.): 23
Vertical Work Table Size (in.): 9-3/8 x 10
Vise Swivels (deg.): 45
Blade Length (in.): 93
Rectangle at 45 Degrees (in.): 7" (H) x 3-1/2" (W) / 5-1/2"
(H) x 4-1/2" (W)
Throat Depth (in.): 7
Overall Dimensions: 20-1/2 x 49-1/2" x 38"
Height: 40.1 inch
Width: 17.8 inch
Length: 50.5 inch
Net Weight: 286 pound

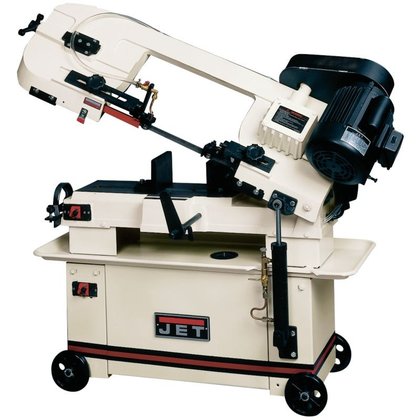

The JET HVBS-7MW Metalworking Bandsaw is UL listed and
powered by a 3/4 HP motor. 4 large diameter wheels and built
in handle allow easy movement. Each HVBS-7MW comes equipped
with a 3/4" carbon steel blade, adjustable material stop and
vertical worktable. Worried about safety? Don't - the HVBS-
7MW shuts off automatically after each cut.
FEATURES:
* UL listed motor
* Heavy cast iron bow and bed
* Hydraulic downfeed for ease of cut
* Hardened and ground worm gear
* Roller cabinet with built-in chip tray
* Automatic shut-off after cut
STANDARD EQUIPMENT:
* Vertical worktable
* Coolant system
* 3/4" Bi-metal blade
* Adjustable material stop
* Large 8" wheels for ease of movement
* Chip brush
2-YEAR FACTORY WARRANTY INCLUDED!!
