Top Seller

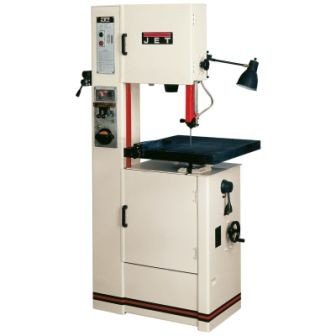

JET VBS-1610 16" x 10"
Location:
McClellan Park, CA
Manufacturer:
JET Tools saws
Model:
VBS-1610
Motor:
2HP, 230/460V, 3Ph, Prewired 230V
Weight:
944 pound

Specifications

Condition:
new
Stock number:
7863
Motor:
2HP, 230/460V, 3Ph, Prewired 230V
Width:
29.5 inch
Height:
78 inch
Length:
38.5 inch
Net weight:
944 pound
Stock number:
414485
Welder (kva):
1.5 KVA
Table size (in.):
22 x 24
Table tilt (deg.):
8 F & B, 12 L & 15 R
Blade length (in.):
123-1/2
Overall dimensions:
37" x 28" x 72-1/2"
Throat depth (in.):
15-1/2
Blade speeds (sfpm):
Low 82 to 330; High 985 to 3,950
Blade width (min-max/ in.):
1/8 - 5/8
Cutting capacity height (in.):
10
Table height at 90 degrees (in.):
40
Subcategory:
Vertical bandsaws

Description

Model: VBS-1610
Stock Number: 414485
Motor: 2HP, 230/460V, 3Ph, Prewired 230V
Cutting Capacity Height (in.): 10
Blade Speeds (SFPM): Low 82 to 330; High 985 to 3,950
Throat Depth (in.): 15-1/2
Blade Length (in.): 123-1/2
Blade Width (Min-Max/ in.): 1/8 - 5/8
Table Size (in.): 22 x 24
Table Tilt (deg.): 8 F & B, 12 L & 15 R
Table Height at 90 Degrees (in.): 40
Welder (KVA): 1.5 KVA
Overall Dimensions: 37" x 28" x 72-1/2"
Height: 78 inch
Width: 29.5 inch
Length: 38.5 inch
Net Weight: 944 pound
FEATURES:
* 14" AND 16" VERTICAL BANDSAWS
* Specially designed for shop use, including the cutting
of ferrous type materials
* Heavy-duty, completely enclosed steel frame
* Variable speeds provide proper adjustments for high
efficiency cutting
* Multi-tilting worktable
* Easy to read blade tension indicator UNIQUE Feature OF
VBS-1611
* Designed for a multitude of uses in the shop, including
the cutting of both ferrous and non-ferrous type metals
* Two-speed gear box and variable speeds provide quick
setting and allow proper adjustment for high efficiency
cutting
* Increased accuracy is possible with the rip fence, which
can be used on either side of the blade
STANDARD EQUIPMENT:
* Blade welder, grinder, and cutter
* Worklamp
* Chip blower
* 1/4" x 14/18VT Bi-metal blade
* Blade and tire cleaning brush
* Set of tools
2-YEAR FACTORY WARRANTY INCLUDED!!
