Top Seller

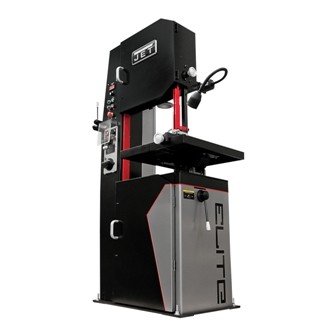

ELITE EVBS-26 26" x 14",
Location:
McClellan Park, CA
Manufacturer:
ELITE
Model:
EVBS-26
Motor:
2HP, 230/460V, 3Ph Prewired 230V CSA/UL Certified
Weight:
1,433

Specifications

Condition:
new
Stock number:
8329
Motor:
2HP, 230/460V, 3Ph Prewired 230V CSA/UL Certified
Table size:
27-1/2"L x 23-1/2"W
Stock number:
891115
Net weight (lbs.):
1,433
Table tilt (deg.):
10 L & 45 R
Blade length (in.):
185-1/2
Overall dimensions:
51"L x 32"W x 83-1/2"H
Table height (in.):
39-3/8
Blade speeds (sfpm):
Variable 50 - 5000
Gross weight (lbs.):
1,655
Height capacity (max.) (in.):
14
Throat capacity (max.) (in.):
26
Blade width (min.-max.) (in.):
1/8 - 1
Subcategory:
Vertical bandsaws

Description

Model: EVBS-26
Stock Number: 891115
Height Capacity (Max.) (In.): 14
Throat Capacity (Max.) (In.): 26
Blade Length (In.): 185-1/2
Blade Width (Min.-Max.) (In.): 1/8 - 1
Blade Speeds (SFPM): Variable 50 - 5000
Table Size: 27-1/2"L x 23-1/2"W
Table Height (In.): 39-3/8
Table Tilt (Deg.): 10 L & 45 R
Motor: 2HP, 230/460V, 3Ph Prewired 230V CSA/UL Certified
Overall Dimensions: 51"L x 32"W x 83-1/2"H
Net Weight (lbs.): 1,433
Gross Weight (lbs.): 1,655
FEATURES:
* Heavy-duty completely enclosed steel frame provides
strength and rigidity
* Tungsten carbide blade guides with precision bearings
stabilize the blade for increased accuracy and extended
blade life
* Hand wheel with blade tensioning guide accurately measures
blade pressure to prevent breakage
* 4.2 Kilo-volt Ampere bi-metal blade welder has a safety
glass cover for increased user safety
* Following strict guidelines, CSA/UL electrics have been
added for increased safety
STANDARD EQUIPMENT:
* Bi-Metal blade
* Protractor
* Work Lamp
* Rip fence
* Chip pan
3-YEAR FACTORY WARRANTY INCLUDED!!
