Top Seller

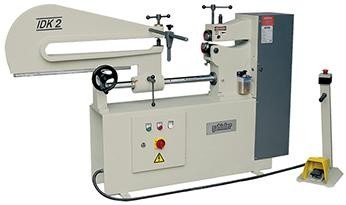

SAHINLER IDK-2 14 Ga, RING
Location:
McClellan Park, CA
Manufacturer:
Sahinler
Model:
IDK-2
Capacity:
14 Gauge Mild Steel
Weight:
770 lbs

Specifications

Condition:
new
Stock number:
5764
Motor:
1.5 HP, 3 Phase, 220/440 Volt, 60 HZ
Capacity:
14 Gauge Mild Steel
Dimensions:
56"L X 16"W X 46"H
Cutting speed:
24 Feet Per Minute
Approx. weight:
770 lbs
Max. cutting diameter:
39-3/8" (When Cut From Squares)
Min. cutting diameter:
7.09"
Throat depth of cutting head:
11.02"
Throat depth of work holding assy:
27.56"
Subcategory:
Shears
Subcategory 2:
Circle shears

Description

Model: IDK-2
Capacity: 14 Gauge Mild Steel
Max. Cutting Diameter: 39-3/8" (When Cut From Squares)
Min. Cutting Diameter: 7.09"
Throat depth of work holding assy: 27.56"
Throat depth of cutting head: 11.02"
Motor: 1.5 HP, 3 Phase, 220/440 Volt, 60 HZ
Cutting Speed: 24 Feet Per Minute
Dimensions: 56"L X 16"W X 46"H
Approx. Weight: 770 lbs.
FEATURES:
* Rigid cast iron frame
* Shafts assembled in bronze bushings.
* Special steel blades
* Manual clamping of the workpiece
* Manual positioning of the cutting blade
* Inside diameter cutting
* Central lubrication system
* Cutting speed, approx 24' per minute
* Movable control panel with foot pedal.
* Low voltage at the control
* Emergency stop control in the control box on the machine
