- Stock number:
- Shipping weight:
- 700 lbs
- Back gauge range:
- Front gauge range:
- Max. cutting length:
- Floor space, gauges in position:
- 45" X 80"
- Overall dimensions, less gauges:
- 46.5"L X 27"W X 42"H
- Max. shearing capacity, stainless:
- 20 Gauge
- Max. shearing capacity, mild steel:
- 16 Gauge
- Machine Tools equipment in United States
- Subcategory 2:
- Foot shears
Max. Shearing Capacity, Mild Steel: 16 Gauge
Max. Shearing Capacity, Stainless: 20 Gauge
Max. Cutting Length: 37"
Back Gauge Range: 30"
Front Gauge Range: 37"
Floor Space, Gauges in Position: 45" X 80"
Overall Dimensions, Less Gauges: 46.5"L X 27"W X 42"H
Shipping Weight: 700 lbs.

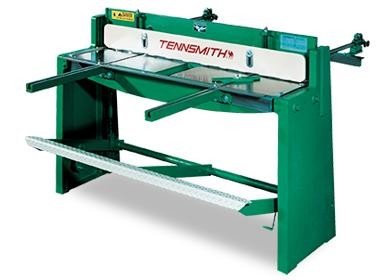

TENNSMITH's squaring shears offer precision shearing and
rugged construction at an affordable price. The shear frame,
bed and cutter head assemblies are constructed of heavy-duty
cast iron. The shear bed is machined and then surface ground
to precision tolerances to ensure an accurate working
* Precision shearing and rugged construction
* Shear frame, bed, and cutter head assemblies are heavy-
duty cast iron.
* Shear bed is machined and then surface ground to precision
* Triaction, high-carbon/highchromium (HCHC) steel blades
* Upper and lower blades have a 2 degrees edge relief
* Lower blade has additional 1 degree face relief
* Triaction blades help prevent material movement while
shearing, prolonging blade life.
* Lower shear blade is bed-adjusting
* Upper shear blade is adjustable by means of truss bar on
* Spring activated holddown feet
* Standard, double locking back gauge, with embossed scales
and venier wheels for fine adjustment
* Back gauge
* Front extension arms with stop
* Bevel gauge
* Graduated side scales
OPTIONAL SQUARING ARM AVAILABLE
100% MADE IN THE U.S.A.!!
INCLUDES 3-YEAR FACTORY WARRANTY!!
