- Stock number:
- 3 hp, 220/440 Volt, Three Phase, 60 HZ
- Cutting length:
- Shipping weight:
- 2300 lbs
- Back gauge range:
- 30 in
- Number of holddowns:
- Solid BAR
- Floor space, gauges in position:
- 92"L x 69"W x 50"H
- Strokes per minute, full length:
- Machine Tools equipment in United States
- Subcategory 2:
- Power shears

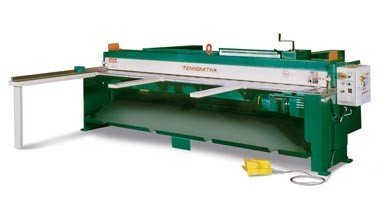

Model: MSE616 Electro-Mechanical
Maximum Shearing Capacity, Mild Steel: 16 gauge
Maximum Shearing Capacity, Stainless Steel: 20 gauge
Cutting Length: 73"
Back Gauge Range: 30 in.
Strokes Per Minute, full length: 40
Electrics: 3 hp, 220/440 Volt, Three Phase, 60 HZ.
Number of Holddowns: Solid BAR
Floor Space, Gauges in Position: 92"L x 69"W x 50"H
Shipping Weight: 2300 lbs.
TENNSMITH's MSE Series mechanical shears utilize a low
maintenance design, coupled with an array of standard
features for an attractive combinationof high value and
The MSE Series comes standard with four-edge, high carbon,
high chrome blades, a self-leveling hold down bar with
neoprene insert, single, continuous, and jog stroke cycles,
motor reverse switch, precision machined table, dual
inch/metric inlaid bed scales and non-metallic gibs. The MSE
Series also incorporates the unique front operated 2x-F back
gauge system. This system allows the operator to move the
back stop from 0 to 30 in 2 seconds with only two rotations
of the handle. Capacities of the shears are 16-gauge mild
steel, 22-gauge stainless with 73 or 121 cutting lengths and
speeds of 40 strokes per minute.
Air-operated sheet support system
Five-foot squaring arm
Front support arms
Protractor and stroke counter
MSE SERIES OPTIONS & ACCESSORIES:
220 Volt, single Phase, 60 HZ
2X Quick-Acting Front-Op Back Gauge System 0-30"
Squaring Arm, 4' with Inlaid Scale
Squaring Arm, 6' with Inlaid Scale
Squaring Arm, 10' with Inlaid Scale
Additional Flip-up Stops (ea)
Front Support Arms, Pair
Stroke Counter For MSE Series (Electro-Mechanical)
100% MADE IN THE U.S.A.!!
INCLUDES 3-YEAR FACTORY WARRANTY!!
