- Stock number:
- Shipping weight:
- 800 lbs
- Back gauge range:
- Front gauge range:
- Options available:
- SQUARING ARM AND ONE-SHOT LUBRICATING
- Max. cutting length:
- Dimensions, less gauges:
- 46-1/4"L X 24"W X 42"H
- Max. operating pressure:
- 75 PSI
- Air consumption per stroke:
- 1.1 CU Foot
- Floor space, gauges in position:
- 45" X 80"
- Strokes per minute, full length:
- Max. shearing capacity, stainless:
- 20 Gauge
- Max. shearing capacity, mild steel:
- 16 Gauge
- Machine Tools equipment in United States
- Subcategory 2:
- Power shears
Max. Shearing Capacity, Mild Steel: 16 Gauge
Max. Shearing Capacity, Stainless: 20 Gauge
Max. Cutting Length: 37"
Back Gauge Range: 30"
Front Gauge Range: 37"
Floor Space, Gauges In Position: 45" X 80"
Dimensions, Less Gauges: 46-1/4"L X 24"W X 42"H
Strokes Per Minute, Full Length: 40
Max. Operating Pressure: 75 PSI
Air Consumption Per Stroke: 1.1 CU Foot
Shipping Weight: 800 lbs.

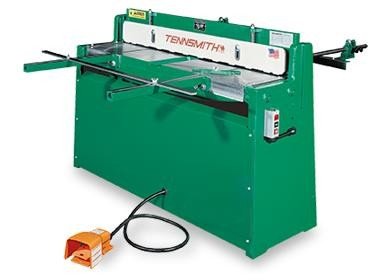

TENNSMITH pneumatic shears combine all the feature of our
foot shear with the advantage and convenience of air
operation. TENNSMITH power shears are a productive addition
to any shop.
Models 36A and 52A are ideal ways to enhance shearing
productivity with minimal investment. The air shears utilize
heavy-duty, tie rod-type pneumatic cylinders, which provide
up to 40 strokes per minute in capacity materials. A foot-
operated air valve control, pressure regulator, air gauge,
oiler/condenser cups and neoprene, padded holddown feet are
standard features. We recommend a maximum air supply of 75
psi for operating these shears at rated capacity. Where air
supply pressures exceed 75 psi, an in-line regulator is
helpful to provide pressure control. Generally, a 10-hp
stand-alone compressor would be the minimum recommended size
to operate these shears.
Other electrical safety features include a low voltage
on/off switch; low voltage, shrouded, electric foot switch;
step-down transformer with low voltage circuit fuse, fully
enclosed electrical box; and insulated reinforced conduit
for all wiring. Models 36A and 52A are ideal ways to enhance
shearing productivity with minimal investment.
All shears are standard, equipped with high-carbon/high-
chromium (HCHC) blades
* Back Gauge
* Front extension arms with stop
* Bevel gauge
* Graduated side gauges
* Foot control and neoprene padded holddown feet
OPTIONS AVAILABLE: SQUARING ARM AND ONE-SHOT LUBRICATING
100% MADE IN THE U.S.A.!!
INCLUDES 3-YEAR FACTORY WARRANTY!!
